| 直径（in） | 8.980 |
|---|---|
| 夹具材质 | 铝合金 |
| 高度（in） | 3.500 |
| 材质 | 7075-T6511 Aluminum |
| 螺栓分布圆直径（in） | 6.000″ to 7.030″ Slotted c’bores for M12 or 1/2″ SHCS |
| 凸台 / 孔 | 1.000″ Diameter x 0.30″ Receiving Hole |
| 适用机床 | DMG Mori DMU50/50eco, Mori NMV3000 (Inch Pallet), Mori NMV3000 (Metric Pallet), Mori NMV5000 |
| 自重 | 15.5 oz |
| 外廓尺寸 | 10.0000 × 10.0000 × 5.0000 in |

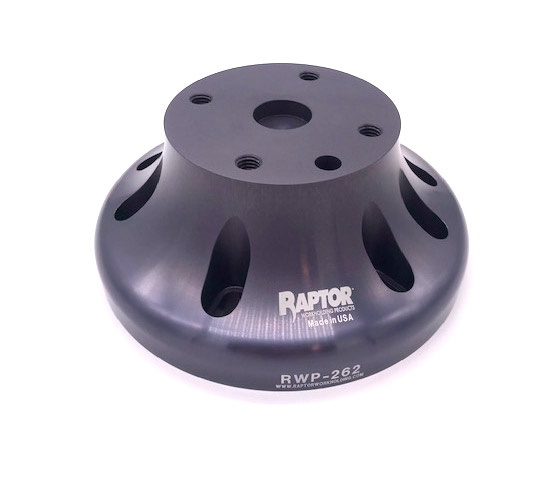

Aluminum Medium Universal Riser
Description Key Dimensions Technical Files Related Products RWP-262 Medium Universal Riser Enables compatible fixtures to be mounted on the pallet of the following machines: Mori Seiki NMV5000, DMU50/50eco, NMV3000 metric/english & multiple other machines. Available Plugs: RWP-810 (1.250 dia), RWP-811 (30mm dia.) & RWP-PLUG-208 (2.50 machinable dia) Mounts: All fixtures with a Raptor Interface See Key Dimension Drawing for more details Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (Required) Password (Required) Remember Me Register I forgot my password Create an Account Name * First Last This field is hidden when viewing the form Username Email * Phone Company * Password Enter Password Confirm Password Country * United StatesAfghanistanÅland IslandsAlba
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
