| 直径（in） | 9.90 |
|---|---|
| 高度（in） | 1.500 |
| 连接对象 | RWP-242-V100, RWP-502 |
| 材质 | Aluminum Plain Finish |
| 凸台 / 孔 | 1.000″ Diameter x 0.30″ Receiving Hole |
| 适用机床 | Any |
| 自重 | 7 oz |
| 外廓尺寸 | 12.0000 × 12.0000 × 4.0000 in |

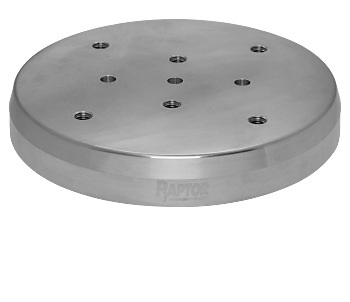

Aluminum Emergency Adapter for RWP-502 Vise 9.9" Diameter, 1.500" Height

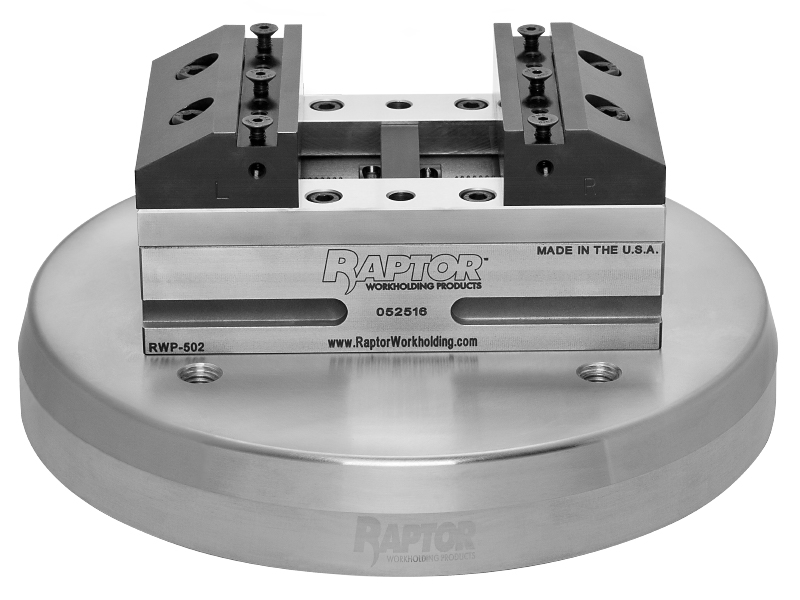

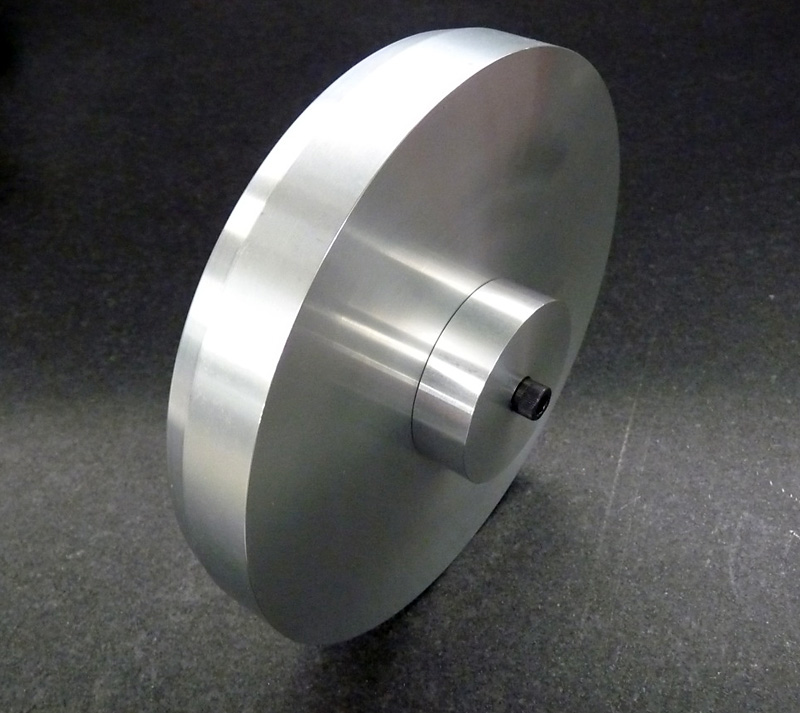

Description Key Dimensions Included Technical Files Related Products RWP-209-V100 Emergency adapter The Emergency adapter allows you to drill the specific mounting hole configurations necessary to connect to your machine's rotary table/pallet. Once completed, then connect the adapter to the table/pallet and mount the vise. When mounted together, the overall height is 4.471″. If additional height is needed, then mount the RWP-242-V100 Riser Plate in between the vise and adapter for a total z=6.221″. RWP-PLUG-208 (Machinable 2.50″ diameter plug) is available upon request and is sold separately. See Key Dimensions drawing for more information Qty of one 5/16-18 X 1-1/4″ Socket Head Cap Screw Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
