| 连接对象 | RWP-001, RWP-001SS, RWP-002, RWP-002SS, RWP-003-4X, RWP-006, RWP-006SS, RWP-013, RWP-013SS, RWP-018, RWP-018SS, RWP-030SS, RWP-601, RWP-602 |
|---|---|
| 直径（in） | 9.055 |
| 高度（in） | 1.500 |
| 材质 | 6061 Aluminum |
| 凸台 / 孔 | 1.000″ Diameter x 0.30″ Receiving Hole |
| 适用机床 | Any |
| 自重 | 7 oz |
| 外廓尺寸 | 12.0000 × 12.0000 × 4.0000 in |

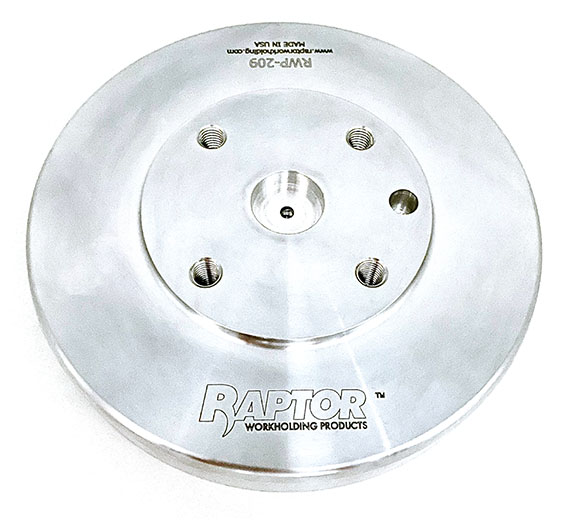

Aluminum Emergency Adapter 9.055" Diameter, 1.500" Height

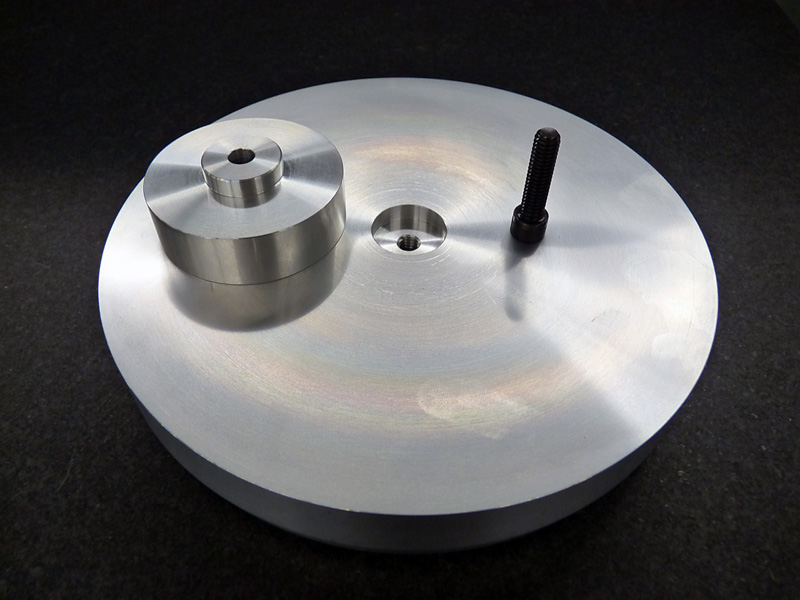

Description Key Dimensions Included Technical Files Related Products RWP-209 Large Emergency Adapter Enables compatible fixtures to be mounted on the pallet of your machine. You simply add the mounting holes. Available Plugs: RWP-810 (1.250 dia), RWP-811 (30mm dia.) & RWP-PLUG-208 (2.50 machinable dia) Mounts: All fixtures with a Raptor Interface See Key Dimension Drawing for more details Qty of one 5/16-18 X 1-1/4″ Socket Head Cap Screw Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (Required) Password (Required) Remember Me Register I forgot my password Create an Account Name * First Last This field is hidden when viewing the form Username Email * Phone Company * Password Enter Password Confirm Password Country * United StatesAfghanistanÅland Isl
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
