| 直径（in） | 9.875 |
|---|---|
| 高度（in） | 2.000 |

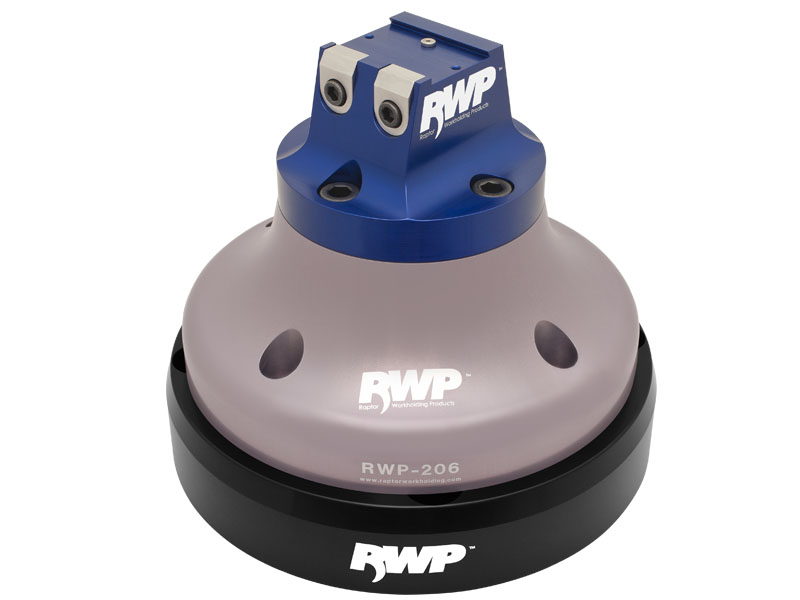

| 连接对象 | RWP-001, RWP-001SS, RWP-002, RWP-002SS, RWP-013, RWP-013SS, RWP-018, RWP-018SS, RWP-030SS, RWP-206, RWP-601, RWP-602 |
| 材质 | 7075 Aluminum |
| 螺栓分布圆直径（in） | 5.50″ to 8.50″ for M10 or 3/8 SHCS |
| 凸台 / 孔 | 1.000″ Diameter x 0.30″ Receiving Hole |
| 适用机床 | Any |
| 自重 | 13 oz |
| 外廓尺寸 | 11.0000 × 11.0000 × 4.0000 in |

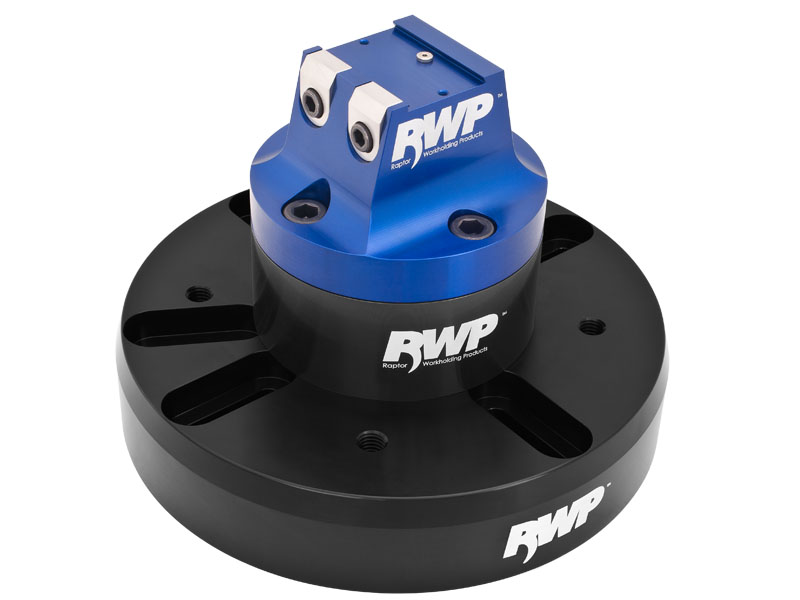

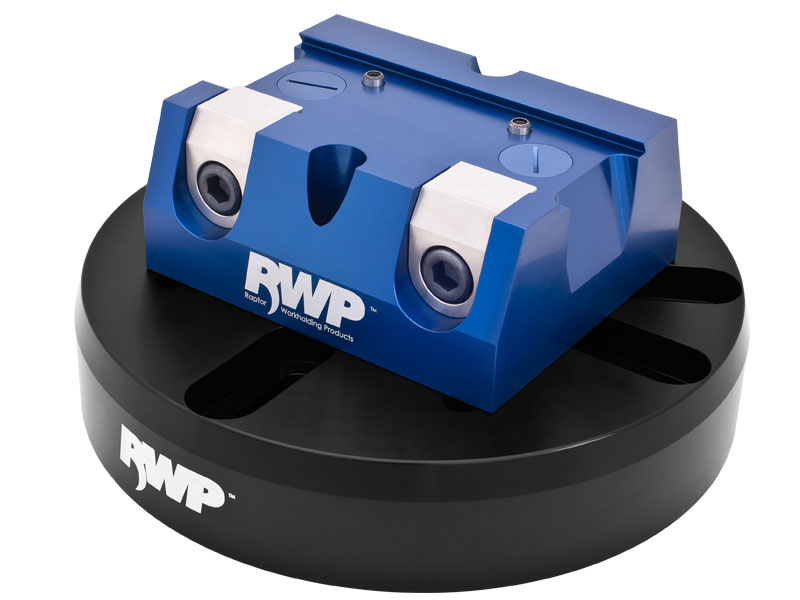

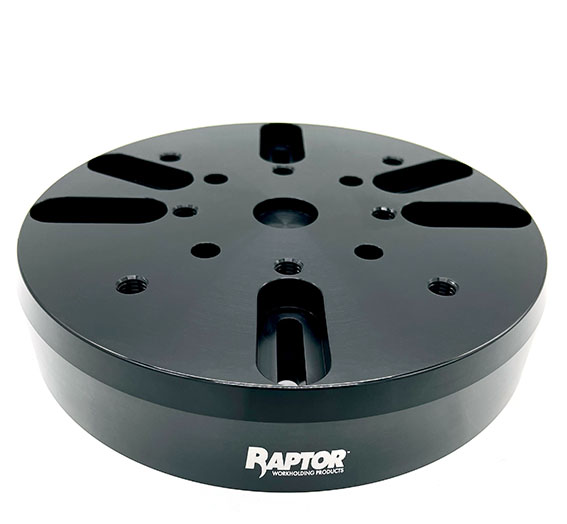

Aluminum Universal Adapter 9.875" Diameter, 2.00" Height
Description Key Dimensions Technical Files Related Products RWP-222 Small Universal Adapter Mount directly to your machine table/pallet using slotted c'bores for M10 or 3/8 SHCS. RWP-PLUG-208 (Machinable 2.50″ diameter plug) is available upon request and is sold separately. Available Plugs: RWP-810 (1.250 dia), RWP-811 (30mm dia.) & RWP-PLUG-208 (2.50 machinable dia) Mounts: All fixtures with a Raptor Interface See Key Dimensions drawing for more information Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (Required) Password (Required) Remember Me Register I forgot my password Create an Account Name * First Last This field is hidden when viewing the form Username Email * Phone Company * Password Enter Password Confirm Password Country * United StatesAfgha
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
