| 连接对象 | RWP-001, RWP-001SS, RWP-002, RWP-002SS, RWP-003-4X, RWP-013, RWP-013SS, RWP-018, RWP-018SS, RWP-030SS |
|---|---|
| 直径（in） | 6.300 |
| 高度（in） | 1.500 |
| 材质 | 7075-T6511 Aluminum |
| 螺栓分布圆直径（in） | 5.400-5.512″ for (6) 3/8-16 SHCS |
| 凸台 / 孔 | 1.5000″ Diameter x .313″ Boss |
| 适用机床 | Haas Series HRT160, Haas Series TR160 |
| 自重 | 5 oz |
| 外廓尺寸 | 7.0000 × 7.0000 × 3.0000 in |

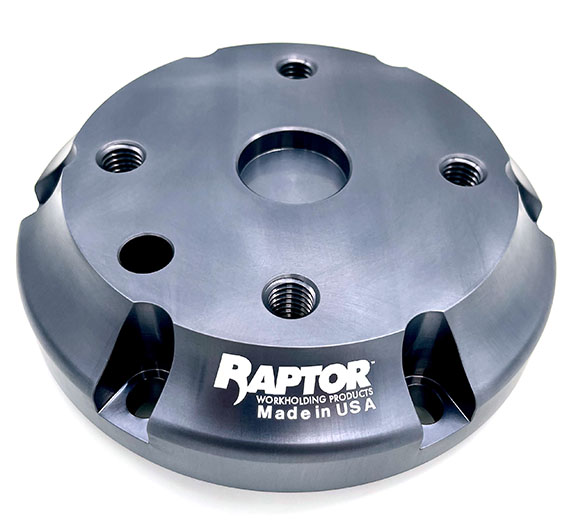

Aluminum Adapter Haas Series: TR160 & HRT160 6.300" Diameter, 1.500" Height
Description Key Dimensions Included Technical Files Related Products RWP-203 Adapter Enables compatible fixtures to be mounted on the Haas TR-160, TR160-2, TR200Y, HRT160 & HRC160 & HRC Mounts: All fixtures with a Raptor Interface Included Items: (6) 3/8-16 x 1.00 long SHCS, (6) 41406T Te-co Tnuts See Key Dimension Drawing for more details. Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (Required) Password (Required) Remember Me Register I forgot my password Create an Account Name * First Last This field is hidden when viewing the form Username Email * Phone Company * Password Enter Password Confirm Password Country * United StatesAfghanistanÅland IslandsAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua and BarbudaArgentinaArmeniaArubaAu
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
