| 连接对象 | RWP-027 |
|---|---|
| 直径（in） | 3.938 |
| 高度（in） | 0.750 |
| 材质 | 7075-T6511 Aluminum |
| 螺栓分布圆直径（in） | 2.677″ for (4) M8 or 5/16″ SHCS |
| 凸台 / 孔 | 1.968″ dia x 0.230″ plug |
| 适用机床 | Yukiwa TNT100L |
| 自重 | 120 oz |
| 外廓尺寸 | N/A |

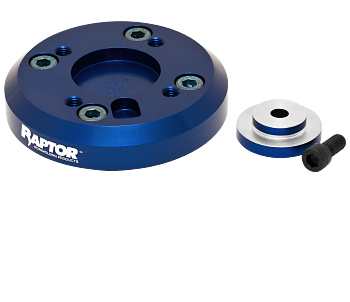

Aluminum Adapter attaches RWP-027 to Yukiwa TNT100L 3.938" Diameter, .750" Height

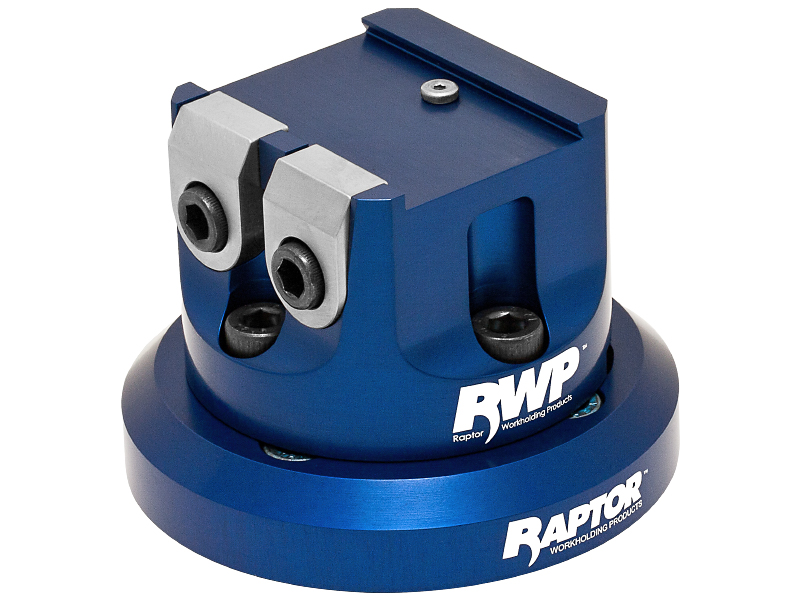

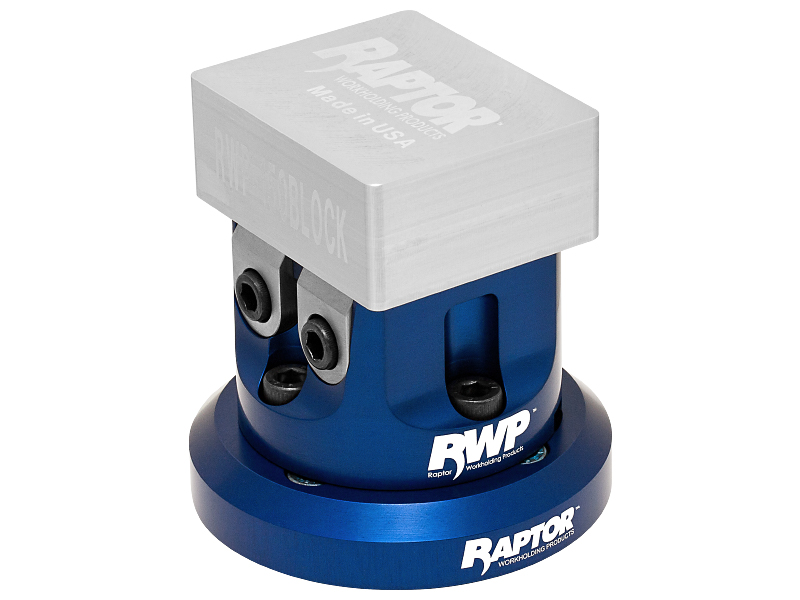

Description Key Dimensions Technical Files Related Products RWP-241 Adapter – 7075-T6511 Aluminum This adapter has the mounting interface for the RWP-027, 1.5″ Dovetail Fixture and is designed to mount directly to the Yukiwa TNT100L Product height: .750″ Product Diameter: 3.94″ Bolt Circle Diameter: 2.677″ for (4) M8 or 5/16″ SHCS Boss/Hole: 1.968″ dia x 0.230″ plug See Key Dimension Drawing for more details Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (Required) Password (Required) Remember Me Register I forgot my password Create an Account Name * First Last This field is hidden when viewing the form Username Email * Phone Company * Password Enter Password Confirm Password Country * United StatesAfghanistan&Ar
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
