| 连接对象 | RWP-019SS, RWP-024, RWP-042SS |
|---|---|
| 直径（in） | 3.940 |
| 夹具材质 | 铝合金 |
| 高度（in） | 0.750 |
| 材质 | 7075 Aluminum |
| 凸台 / 孔 | 0.3755″ dia x .38 receiving hole |
| 适用机床 | Erowa 2.362 B.C, Haas TRT100, Haas TRT70, Nikken 100FA, Nikken 130FA, Sankyo RT100, Sankyo RT80, Yukiwa TNT100L |
| 自重 | 15.5 oz |
| 外廓尺寸 | 10.0000 × 10.0000 × 5.0000 in |
Small Machine Universal Riser Kit

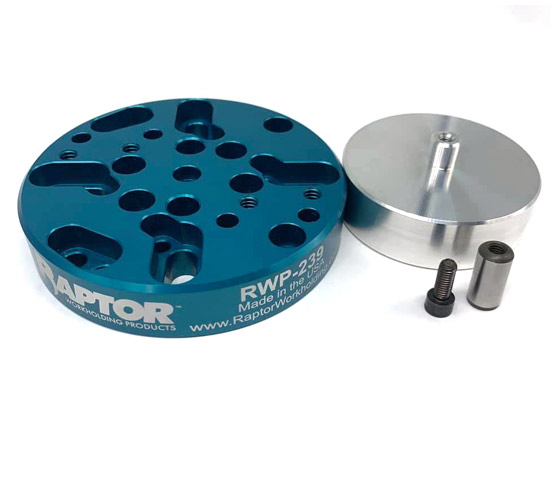

Description Key Dimensions Included Technical Files Related Products RWP-239 Small Machine Adapter This small machine adapter fits on the following Machines: Haas TRT70 & TRT100, Nikken 100FA & 130FA, Yukiwa TNT100L, Sankyo RT80 & RT100 and others. This adapter allows you to mount the following fixtures on top: RWP-024. RWP-024SS, RWP-019SS & RWP-042SS Comes With: 3/8″ dowel pin, 2.50 Machinable plug, Retaining Screw See Key Dimensions Drawing For more detail Riser Body Dowel Pin 3/8″ Diameter Machinable Plug Retainment Screw Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (Required) Password (Required) Remember Me Register I forgot my password Create an Account Name * First Last This field is hidden when viewing the form Username Email * Phone Comp
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
