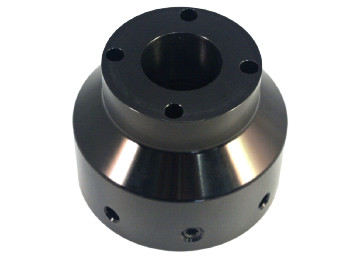

RWP-238-8

RWP-238-8　铝合金转接板适用于 RWP-003 5C Rotary Indexer Spindle Nose 8TPI

Aluminum Adapter for RWP-003 5C Rotary Indexer Spindle Nose 8TPI

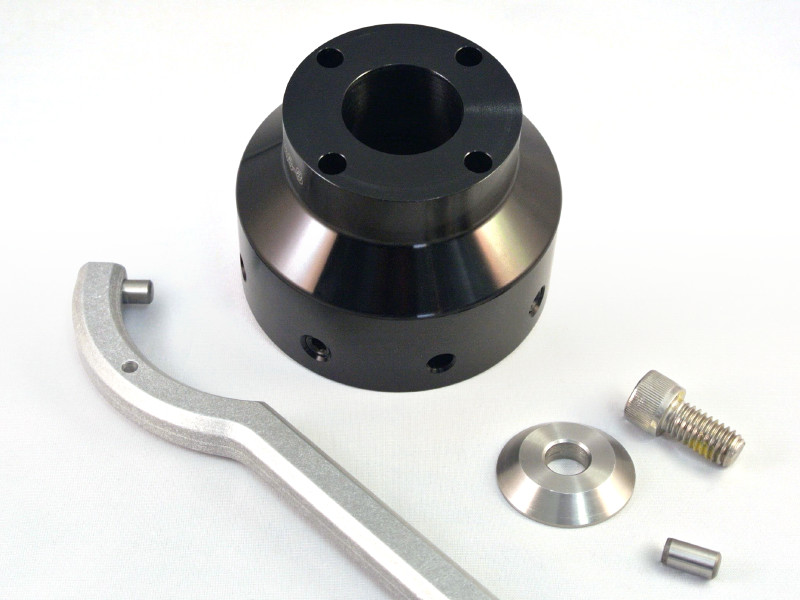

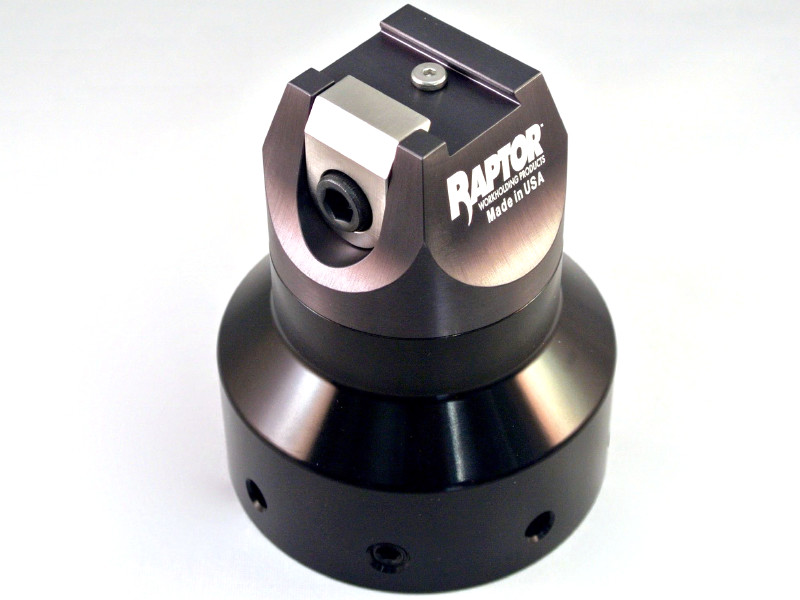

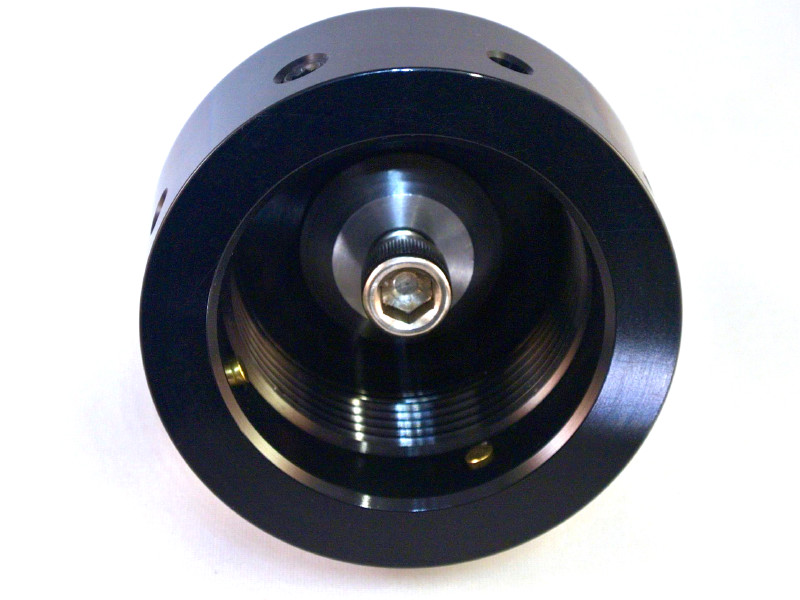

Description Instructions & Guidelines Technical Files Related Products RWP-238-8 Spindle Nose Adapter – 8 TPI This adapter that enables the the RWP-003 to be mounted to any 5C Rotary Indexer with a spindle nose of 8 TPI. Mounts: RWP-003 See Key Dimension Drawing for more details To assemble the RWP-238-8 adapter to the RWP-003 dovetail fixture, install the 2 supplied dowel pins in the RWP-003 diametrically opposed. Mate the adapter to the RWP-003 using the supplied 3/8-16 socket head cap screw and beveled washer. Use around 250 inch pound torque. Load the dovetail prepped workpiece in the RWP-003. It is recommended to then clamp your blank stock in a vise to facilitate tightening the SHCS. This process is needed one time only to ensure that the fixture is completely tightened to your adapter. Once completed, the adapter can be quickly screwed on and off the spindle nose. To assembl

本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
