| 连接对象 | RWP-001, RWP-001SS, RWP-002, RWP-002SS, RWP-013, RWP-013SS, RWP-018, RWP-018SS, RWP-030SS |
|---|---|
| 直径（in） | 14.75 |
| 高度（in） | 6.550 |
| 螺栓分布圆直径（in） | 13.200 for M12 or 1/2″ SHCS |
| 凸台 / 孔 | 1.970″(50mm) Diameter x 0.750″ Receiving hole |
| 材质 | 7075-T6511 Aluminum |
| 适用机床 | Haas UMC-750 / UMC-750SS, Matsuura MX-520 (300mm) |
| 自重 | 120 oz |
| 外廓尺寸 | N/A |

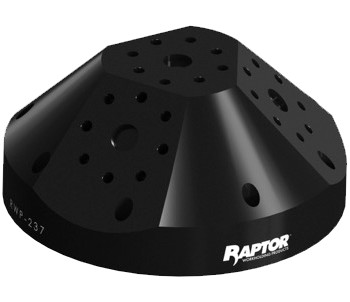

Aluminum Nest Riser Haas UMC-750/UMC-750SS Matsuura MX-520 (300mm) 14.75" Diameter, 6.50" Height
Description Key Dimensions Technical Files Related Products RWP-237 Multi-fixture Nest Riser (45 Degrees) Designed to fit the following machines: Haas UMC-750/UMC-750SS or Matsuura MX-520 500mm Mounts” All fixtures with a Raptor Interface See Key Dimensions drawing for more details Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (Required) Password (Required) Remember Me Register I forgot my password Create an Account Name * First Last This field is hidden when viewing the form Username Email * Phone Company * Password Enter Password Confirm Password Country * United StatesAfghanistanÅland IslandsAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua and BarbudaArgentinaArmeniaArubaAustraliaAustriaAzerbaijanBahamasBahrainBangladeshBarbad
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
