| 连接对象 | RWP-001, RWP-001SS, RWP-002, RWP-002SS, RWP-006, RWP-006SS, RWP-013, RWP-013SS, RWP-018, RWP-018SS, RWP-030SS |
|---|---|
| 直径（in） | 11.40 |
| 高度（in） | 4.500 |
| 材质 | 7075-T6511 Aluminum |
| 螺栓分布圆直径（in） | 9.92″ for M12 or 1/2″ SHCS |
| 凸台 / 孔 | 1.970″(50mm) Diameter x 0.750″ Receiving hole |
| 适用机床 | Haas UMC-750 / UMC-750SS, Matsuura MX-520 (300mm) |
| 自重 | 32 oz |
| 外廓尺寸 | 18.0000 × 18.0000 × 8.0000 in |

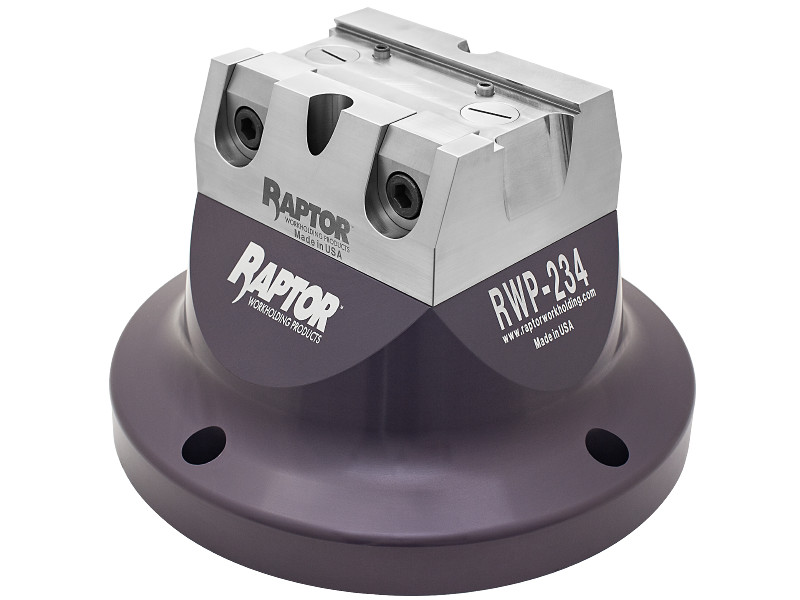

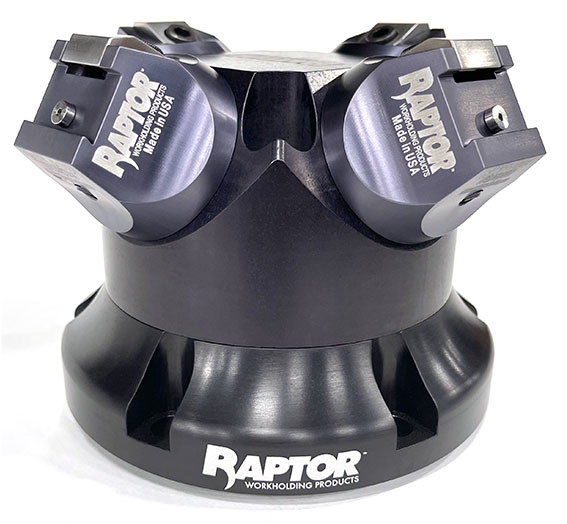

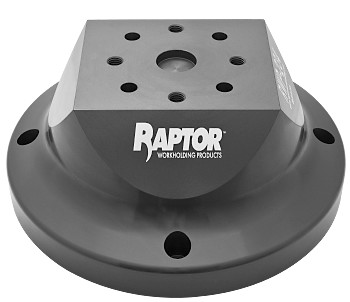

Aluminum Riser Haas UMC-750/UMC-750SS Matsuura MX-520 (300mm) 11.40" Diameter, 4.50" Height
Description Key Dimensions Technical Files Related Products RWP-234 Enables compatible fixtures to be mounted on the following: Haas UMC-750m UMC-750SS or Matsuura MX-520 300mm. Mounts: All fixtures with a Raptor Interface See Key Dimension Drawing for more details Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (Required) Password (Required) Remember Me Register I forgot my password Create an Account Name * First Last This field is hidden when viewing the form Username Email * Phone Company * Password Enter Password Confirm Password Country * United StatesAfghanistanÅland IslandsAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua and BarbudaArgentinaArmeniaArubaAustraliaAustriaAzerbaijanBahamasBahrainBangladeshBarbadosBelarusBelgiumBelizeB
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
