| 连接对象 | RWP-001, RWP-001SS, RWP-002, RWP-002SS, RWP-003-4X, RWP-006, RWP-006SS, RWP-013, RWP-013SS, RWP-018, RWP-018SS, RWP-030SS, RWP-223 |
|---|---|
| 直径（in） | 11.950 |
| 高度（in） | 6.000 |
| 螺栓分布圆直径（in） | 10.150″ for M12 or 1/2″ SHCS |
| 凸台 / 孔 | 1.000″ Diameter x 0.30″ Receiving Hole |
| 适用机床 | Any |
| 自重 | 47 oz |
| 外廓尺寸 | 13.0000 × 13.0000 × 10.0000 in |

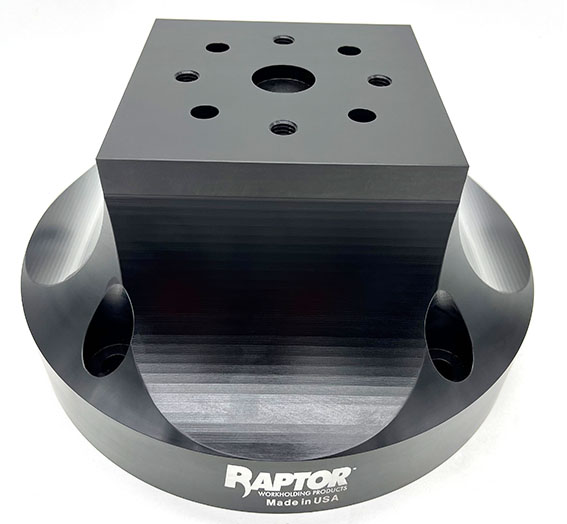

Aluminum Riser 11.950" Diameter, 6.000" Height

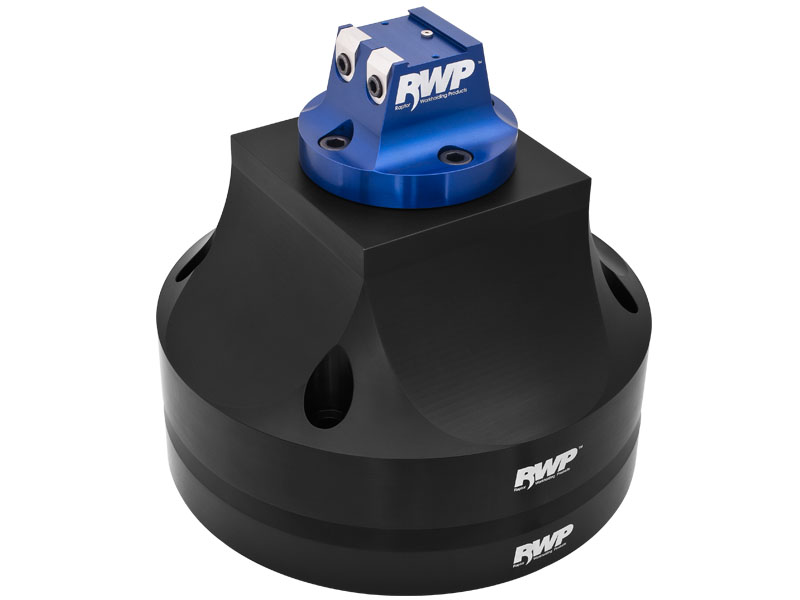

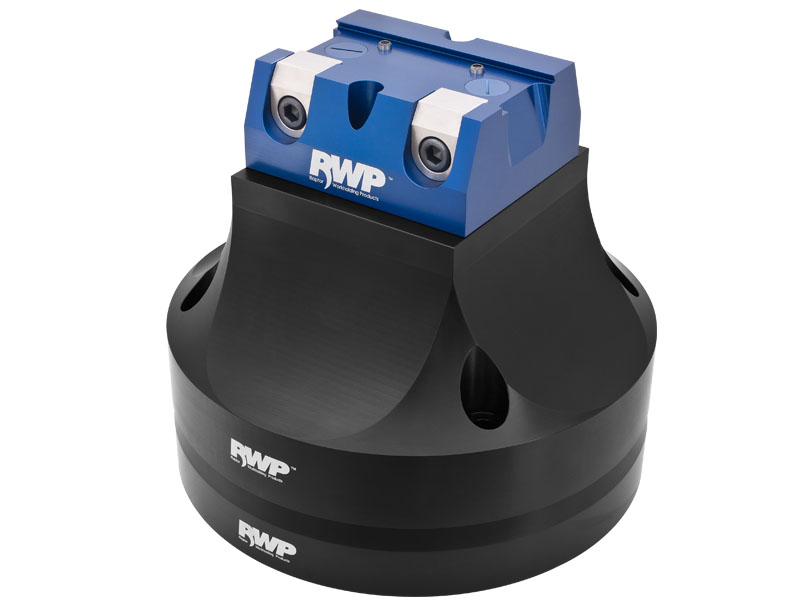

Description Key Dimensions Technical Files Related Products RWP-224 Riser This riser can be used in a modular configuration when used with the Universal Adapter # RWP-223 Available Plugs: RWP-810 (1.250 dia), RWP-811 (30mm dia.) & RWP-PLUG-208 (2.50 machinable dia) Mounts: All fixtures with a Raptor Interface See Key Dimension Drawing for more details Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (Required) Password (Required) Remember Me Register I forgot my password Create an Account Name * First Last This field is hidden when viewing the form Username Email * Phone Company * Password Enter Password Confirm Password Country * United StatesAfghanistanÅland IslandsAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua and BarbudaArgentinaArm
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
