| 连接对象 | RWP-242-V100, RWP-502, RWP-505 |
|---|---|
| 直径（in） | 11.900 |
| 高度（in） | 2.000 |
| 材质 | 7075 Aluminum |
| 凸台 / 孔 | 1.000″ Diameter x 0.30″ Receiving Hole |
| 适用机床 | Any |
| 自重 | 22 oz |
| 外廓尺寸 | 13.0000 × 13.0000 × 6.0000 in |

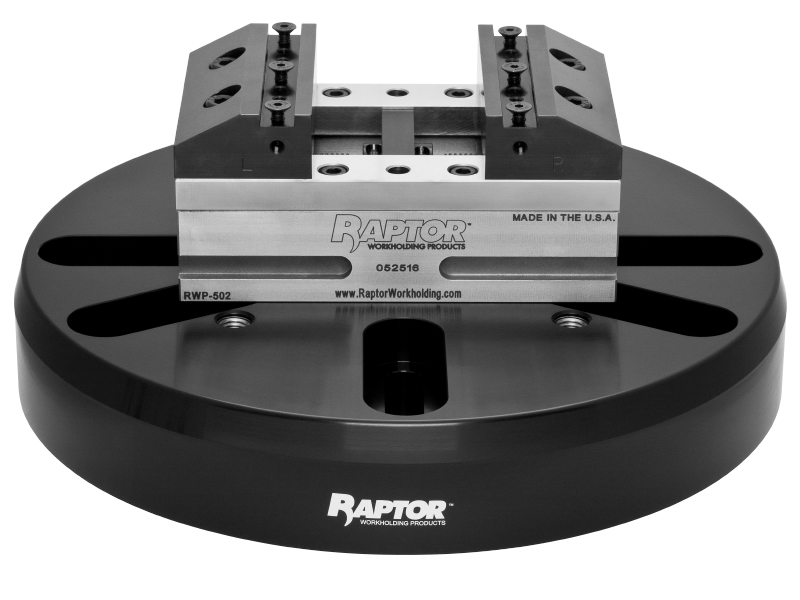

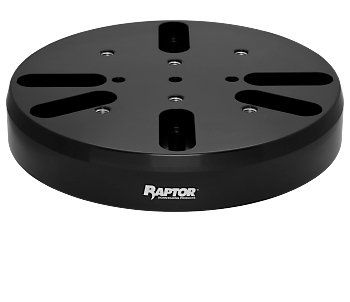

Aluminum Universal Adapter for RWP-502 Vise 11.900" Diameter, 2.00" Height
Description Key Dimensions Configuration Options Technical Files Related Products RWP-223-V100 Large Universal Adapter Mount directly to your machine table/pallet using slotted c'bores for M12 or 1/2″ SHCS. When mounted together, the overall height is 4.971″. If additional height is needed, then mount the RWP-242-V100 Riser Plate in between the vise and adapter for a total z=6.721″. RWP-PLUG-208 (Machinable 2.50″ diameter plug) is available upon request and is sold separately. See Key Dimensions drawing for more information Our adapters and risers allow you to attach Raptor workholding products to any four or five-axis CNC machine. If you need an adapter or riser not seen here, please let us know . Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy .
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
