| 配套夹钳套件号 | RWP-KIT-301SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 燕尾宽度（in） | 1.500 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 15 oz |
| 外廓尺寸 | 12.0000 × 6.0000 × 6.0000 in |

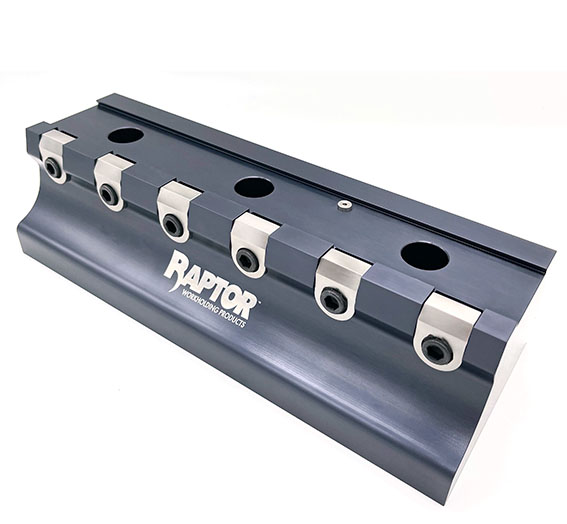

RWP-401-11, Aluminum 1.5” dovetail fixture designed for clamping parts up to 17” long
Description Instructions & Guidelines Key Dimensions Included Technical Files Related Products 7075-T6511 Aluminum 11.00″ Lon Rail 1.5″ Dovetail Fixture Made for longer workpieces. This fixture will not mount to Raptor Risers or adapters. Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient. See Key Dimension Drawing for details. Patented Design. Patent US8,672,310 B2 Fixtures must be bolted down firmly to your Pallet or Tabl
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
