| 配套夹钳套件号 | RWP-KIT-301SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 燕尾宽度（in） | 1.500 |
| 直径（in） | 4.970 |
| 夹具高度（in） | 3.000 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 5 oz |
| 外廓尺寸 | 5.0000 × 5.0000 × 5.0000 in |

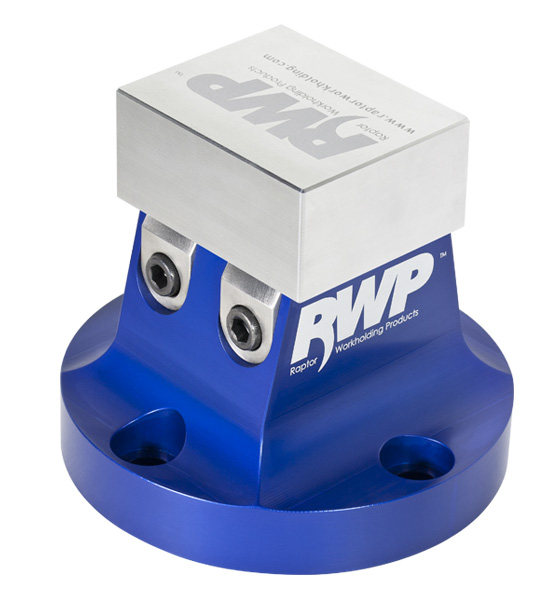

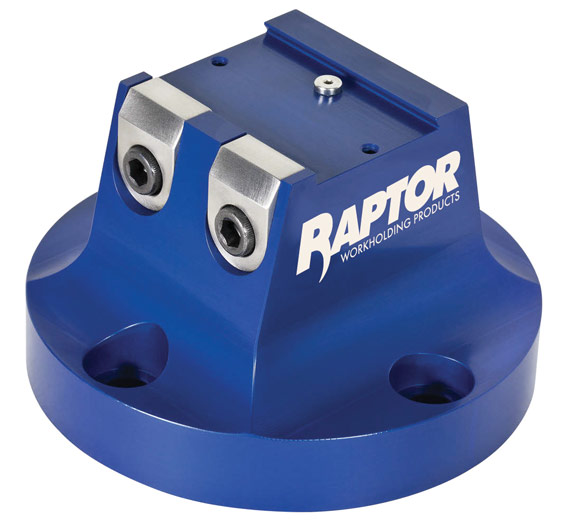

7075-T6511 Aluminum 1.50" Dovetail Fixture – Grid Pattern Mounting
Description Instructions & Guidelines Key Dimensions Included Technical Files Related Products 7075-T6511 Aluminum 1.50″ Dovetail Fixture – Grid Pattern Mounting Made for Tombstones or Grid Plates with a 2.0″ X 2.0″ Hole Pattern or 4.0 Bolt Circle – without a boss or plug. The RWP-026 is a 1.50″ dovetail holder for milling and turning applications. This fixture will not mount to Raptor Risers or adapters. Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
