| 配套夹钳套件号 | RWP-KIT-301SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 燕尾宽度（in） | 1.500 |
| 直径（in） | 4.970 |
| 夹具高度（in） | 2.000 |
| 螺栓分布圆直径（in） | 3.800 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 零点板规格 | 52mm |
| 自重 | 3 oz |
| 外廓尺寸 | 6.0000 × 6.0000 × 6.0000 in |

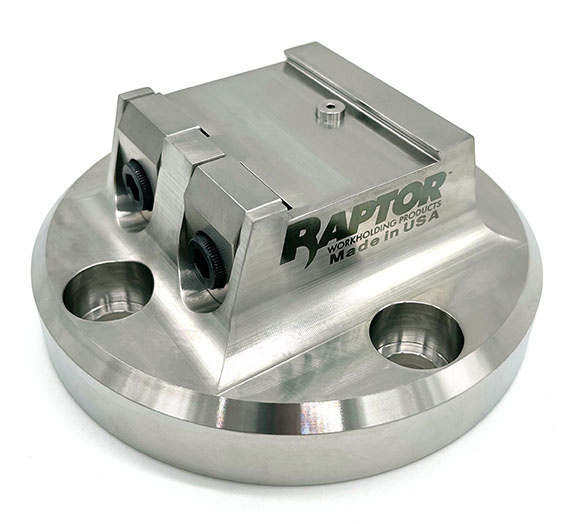

Stainless Steel 1.5" Dovetail Fixture 3.8" Dia. BC 52mm Zero-Point

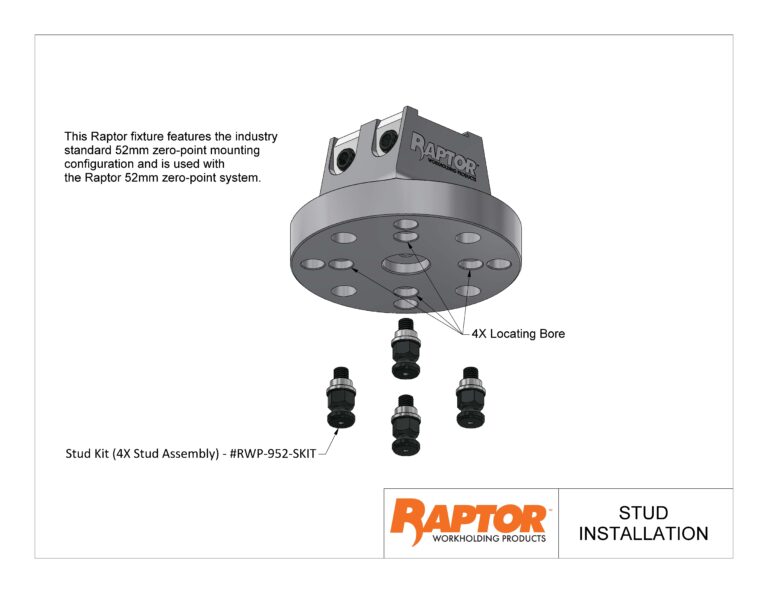

Description Instructions & Guidelines Key Dimensions Technical Files Related Products RWP-013SS is a 17-4 Stainless Steel 1.5″ Dovetail Fixture Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient. This part has been improved to have the ability to mount to industry-standard zero-point plates, including the Raptor 52mm zero-point plates. See Key Dimension Drawing for details. The 50mm zero-point mounting is available as a special.
