| 配套夹钳套件号 | RWP-KIT-301SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 直径（in） | 3.0 |
| 燕尾宽度（in） | 1.500 |
| 夹具高度（in） | 2.000 |
| 螺栓分布圆直径（in） | 2.362 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 2 oz |
| 外廓尺寸 | 6.0000 × 6.0000 × 6.0000 in |
Aluminum 1.5"Dovetail Fixture 2.362" Dia. BC

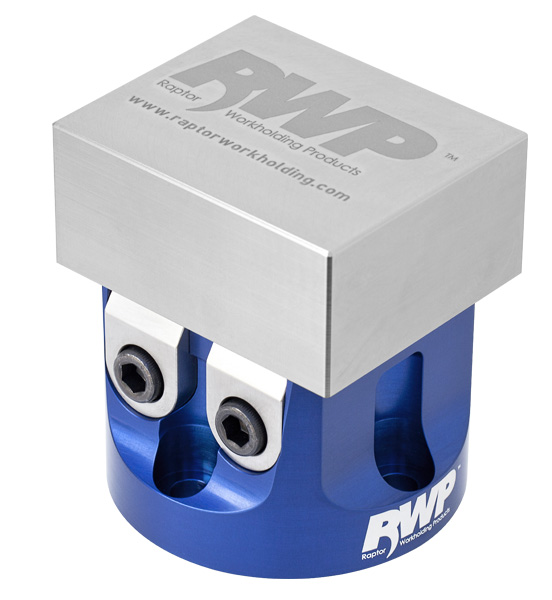

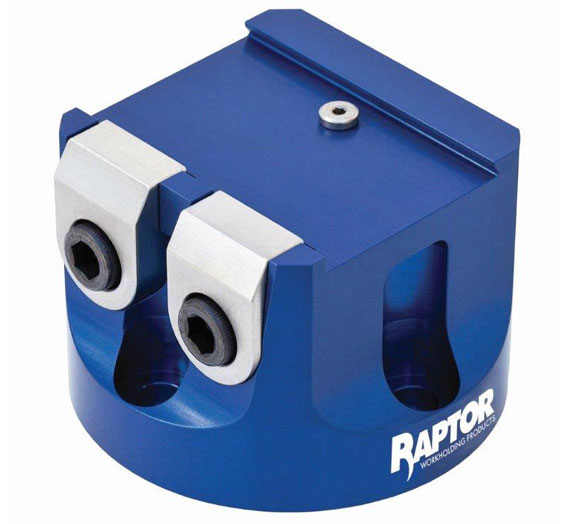

Description Instructions & Guidelines Key Dimensions Included Technical Files Related Products 7075-T6511 Aluminum 1.5″ Dovetail Fixture This fixture is great for small rotary tables and lathes when used with a custom subplate. It may also be used on the Yukiawa TNT100L when mounted to the RWP-241 adapter plate (Sold separately). This fixture will not mount to Raptor Risers or adapters. Bolt Circle Diameter: 2.362″ for 5/16 or m8 SHCS Boss/Hole: 1.000″ dia. x .30 Receiving hole Machinable centering plug available: RWP-PLUG-208 (Has a 1.000″ dia and 2.500″ dia) Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
