| 配套夹钳套件号 | RWP-KIT-307SQ |
|---|---|
| 燕尾厚度（in） | 0.0781 |
| 燕尾宽度（in） | 0.281 |
| 推荐铣刀 | RWP-DC409C |
| 自重 | 0.75 oz |
| 外廓尺寸 | 3.0000 × 3.0000 × 3.0000 in |

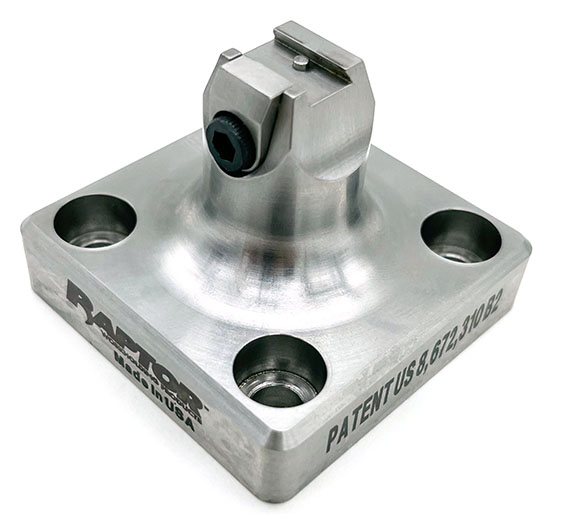

Stainless Steel 0.281"W x 0.0781"H Dovetail Fixture
Description Instructions & Guidelines Key Dimensions Included Technical Files Related Products 17-4 Stainless Steel 0.281″ Wide x .0781″ High Dovetail Fixture This fixture has our smallest dovetail, and is designed for micro machining. The RWP-032SS is designed to connect to your machine using four mounting holes. This fixture replaces the discontinued RWP-009SS. Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece. Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient. See Key Dimensio
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
