| 适配对象 | RWP-003 |
|---|---|
| 燕尾宽度（in） | 0.750 |
| 夹具回转直径 | 7.135 |
| 夹具高度（in） | 3.327 |
| 夹具直径（in） | 4.970 |
| 螺栓分布圆直径（in） | 3.800 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 12 oz |
| 外廓尺寸 | 12.0000 × 12.0000 × 8.0000 in |
Raptor Nest 4 RWP-003 Dovetail Fixtures 3.8" Dia. BC

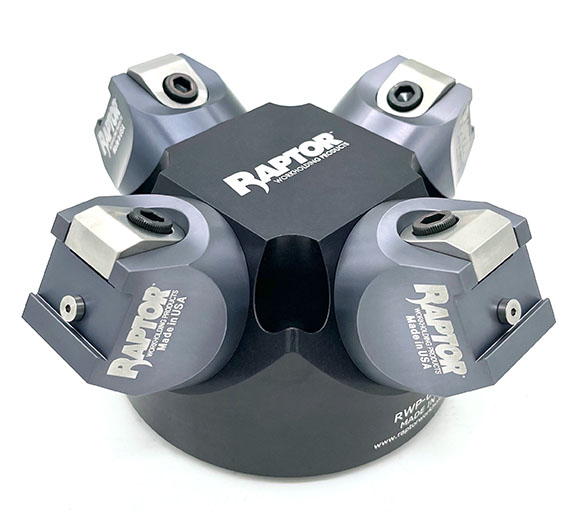

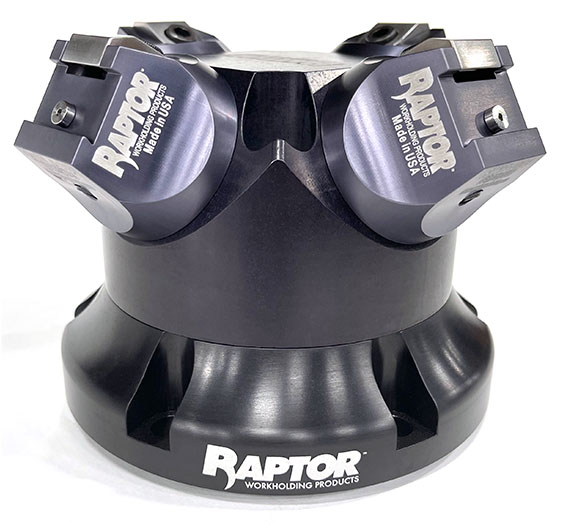

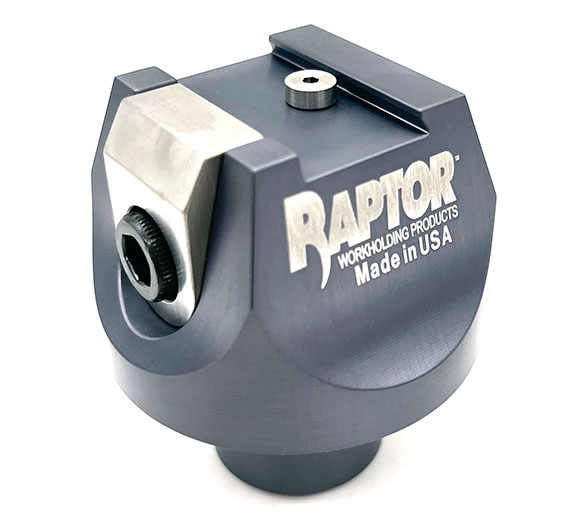

Description Instructions & Guidelines Key Dimensions Included Technical Files Related Products 7075-T6511 Aluminum 0.75″ Dovetail Multi-Fixture The Pyramid body utilizes four RWP-003 dovetail fixtures. This fixture is designed specifically for five-axis machining applications and allows you to hold four workpieces at the same time. This fixture mounts to Raptor risers with Raptor Interface mounting. The Pyramid Body is manufactured from 7075-T6511 aluminum. Patented Design. Patent US8,672,310 B2 Fixtures must be bolted down firmly to your Pallet or Table using the screws provided. Do not alter or replace any screw, spring or clamp with anything other than the exact item provided. Clamps must be tightened between 120 and 175 inch pounds of torque. DO NOT EXCEED 175 Inch Pounds.While for most applications tightening can be accomplished simply by using the T-Handle wrench provided, it
