| 配套夹钳套件号 | RWP-KIT-302SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 燕尾宽度（in） | 0.750 |
| 夹具高度（in） | 1.500 |
| 夹具直径（in） | 2.23 |
| 夹具柄径（in） | 1.125 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 0.75 oz |
| 外廓尺寸 | 5.0000 × 5.0000 × 5.0000 in |

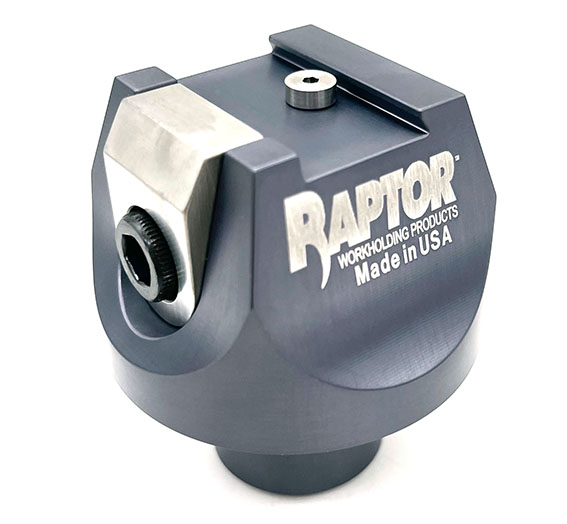

Aluminum 5C Collet Closer 0.75" Dovetail Fixture
Description Instructions & Guidelines Key Dimensions Technical Files Related Products RWP-003 7075-T6511 Aluminum 5C Collet Closer 0.75″ Dovetail Fixture The RWP-003 can be mounted in any 5C collet closer for milling applications. It offers superior clamping strength and part access. The fixture clamps are made from 17-4 Stainless Steel. Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient. See Key Dimension Drawing for details. Lo
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
