| 配套夹钳套件号 | RWP-KIT-302SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 燕尾宽度（in） | 0.750 |
| 直径（in） | 4.330 |
| 夹具高度（in） | 2.000 |
| 螺栓分布圆直径（in） | 3.267 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 3 oz |
| 外廓尺寸 | 6.0000 × 6.0000 × 6.0000 in |

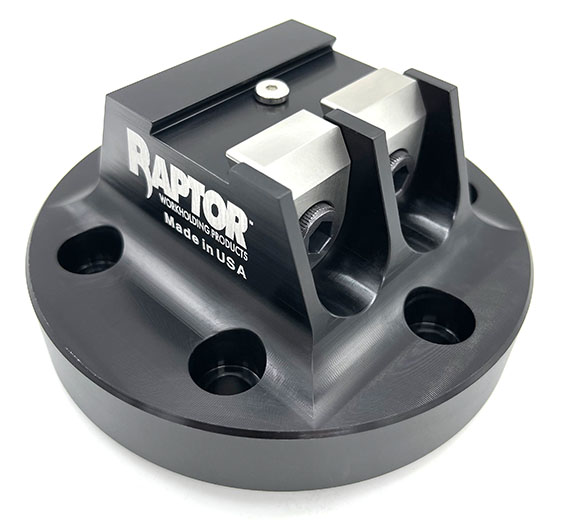

Aluminum 0.75" Dovetail Fixture 3.267" Dia. BC
Description Instructions & Guidelines Key Dimensions Technical Files Related Products 7075-T6511 Aluminum 0.75″ Dovetail Fixture This fixture is designed to connect directly to the HAAS TRT100 & HAAS TR110 machines. Please refer to Haas indexer recommendation for platter weight restrictions. Need extra “Z”? See RWP-038SS : stainless steel 0.75″ dovetail fixture. Overall fixture height is 1.30″ Fixture and mounting screws combined weight: 1 lb / 14.70 oz. Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
