| 燕尾厚度（in） | 0.0781 |
|---|---|
| 燕尾宽度（in） | 0.281 |
| 夹具直径（in） | 2.070 |
| 夹具高度（in） | 1.438 |
| 自重 | 0.75 oz |
| 外廓尺寸 | 3.0000 × 3.0000 × 3.0000 in |

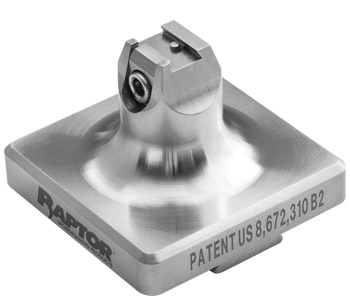

Stainless Steel 0.281"W x 0.0781"H Dovetail Fixture with .75" Dovetail Base
Description Instructions & Guidelines Key Dimensions Technical Files Related Products This fixture has our smallest dovetail, and is designed for micro machining. Connects directly to the following 0.75″ dovetail fixtures: RWP-002, RWP-002SS, RWP-015, RWP-023, RWP-024 & Rwp-024SS. This allows you to quickly machine smaller size parts without taking your primary fixtures off of the machine. This fixture replaces the discontinued RWP-010SS. Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece. Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the sa
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
