| 配套夹钳套件号 | RWP-KIT-3001SQ |
|---|---|
| 燕尾厚度（in） | 0.2500 |
| 燕尾宽度（in） | 2.750 |
| 自重 | 60 oz |
| 外廓尺寸 | 14.0000 × 10.0000 × 7.0000 in |

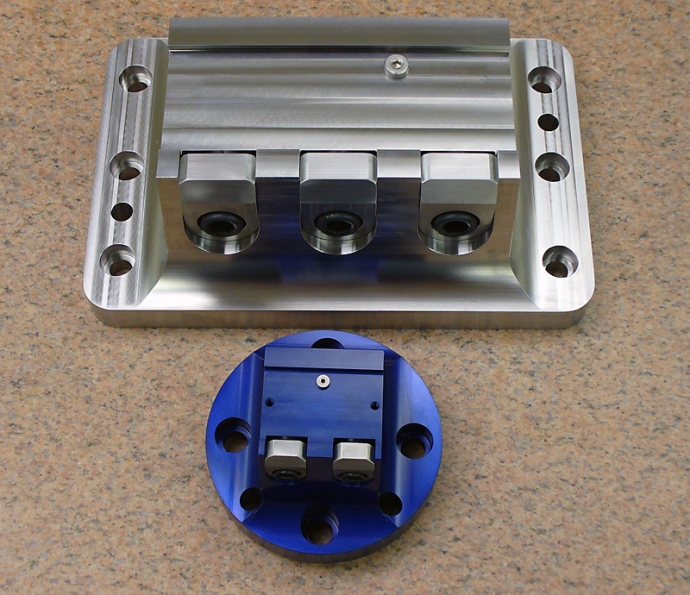

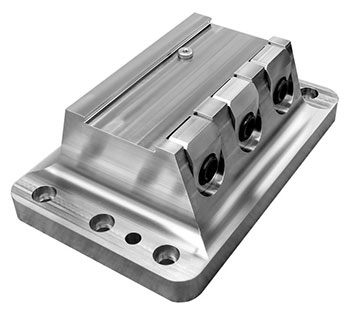

Stainless Steel 2.75" Dovetail Fixture
[vc_row][vc_column] Description Instructions & Guidelines Key Dimensions Included Technical Files Related Products [vc_column_text]17-4 Stainless Steel 2.75″ Dovetail Fixture Contact us for cutter recommendations Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/4″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient. This part has been improved to have the ability to mount to Piranha Zero Point plates. See Key Dimension Drawing for details. Patented Design. Patent US8,672,310 B2[/vc_column_text] [vc_
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
