| 燕尾厚度（in） | 0.1250 |
|---|---|
| 夹具高度（in） | 4.375 |
| 夹具回转直径 | 4.554 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 12 oz |
| 外廓尺寸 | 12.0000 × 12.0000 × 8.0000 in |

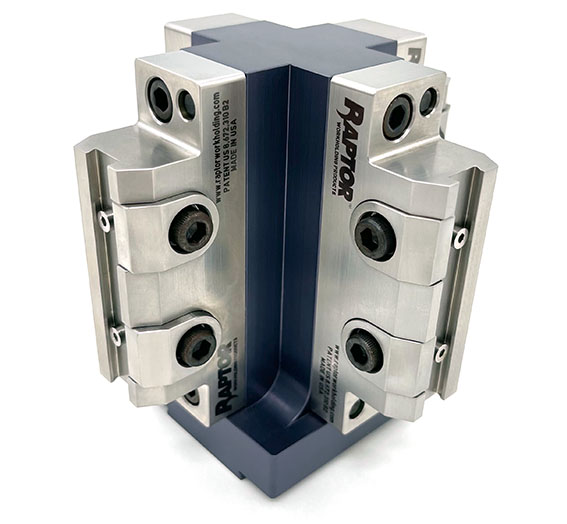

90 degree tombstone 4 RWP-042SS Dovetail Fixtures with 1.5" Dovetail Base
Description Instructions & Guidelines Key Dimensions Included Technical Files Related Products 0.375″ Dovetail 90 Degree Multi-Fixture with a 1.50″ Dovetail Bottom The Mini Tombstone body utilizes four RWP-042SS dovetail fixtures. This fixture is designed specifically for five-axis machining applications and allows you to hold four workpieces at the same time. This fixture mounts to the following 1.50″ Dovetail Raptor Fixtures: RWP-001, RWP-001SS, RWP-013, RWP-013SS, RWP-026, and RWP-027. The dovetail bottom allows for quick and easy change-out. Load-up the next Mini tombstone with your workpieces while the other one is cycling. Changeover time is reduced and the productivity of your machine is drastically increased. The Mini Tombstone Body is manufactured from 7075-T6511 aluminum. The RWP-042SS Fixtures are manufactured from 17-4 Stainless Steel Patented Design. Patent
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
