| 配套夹钳套件号 | RWP-KIT-302SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 燕尾宽度（in） | 0.750 |
| 直径（in） | 4.330 |
| 夹具高度（in） | 1.3 |
| 螺栓分布圆直径（in） | 3.267 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 4 oz |
| 外廓尺寸 | 6.0000 × 6.0000 × 6.0000 in |

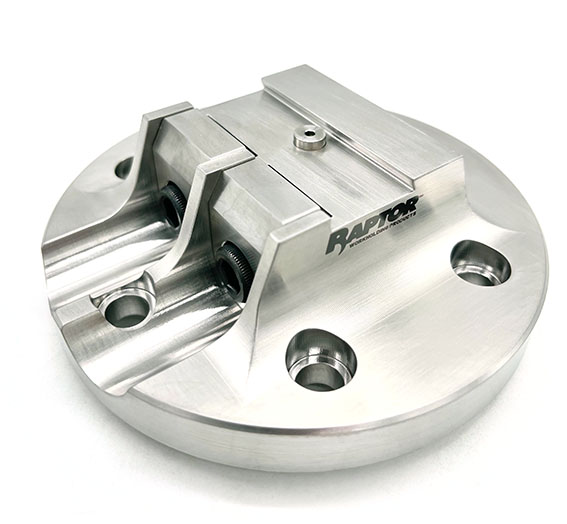

RWP-038SS, Stainless Steel, .75” dovetail fixture specifically designed to be mounted to the Haas TR-100 and the Haas TRT-100 indexer.

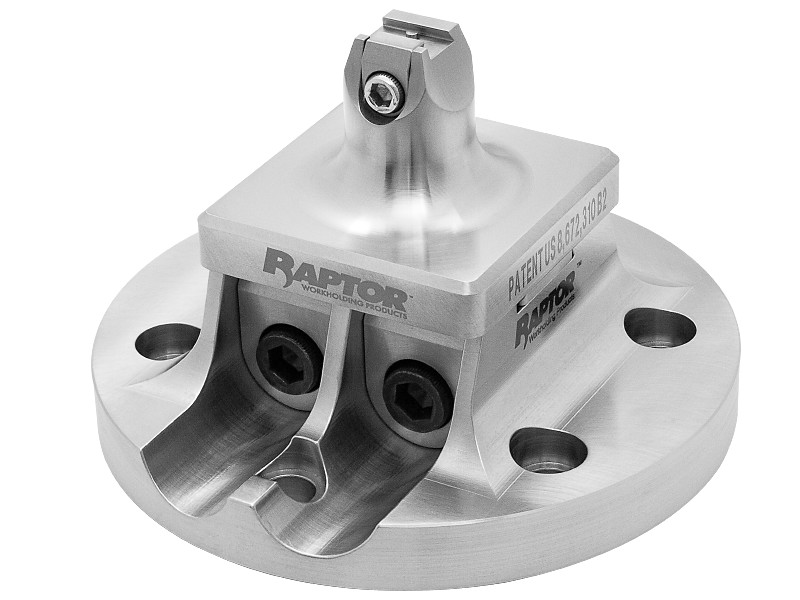

Description Instructions & Guidelines Key Dimensions Technical Files Related Products 17-4 Stainless Steel 0.75″ Dovetail Fixture This fixture is designed to connect directly to the HAAS TRT100 & HAAS TR110 for milling applications. The Ultra-Low height (1.30″) of this fixture allows the user to utilize more of their “Z” axis. Fixture and mounting screws combined weight: 2 lbs / 12.3 oz Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. E
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
