| 配套夹钳套件号 | RWP-KIT-302SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 燕尾宽度（in） | 0.750 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 11 oz |
| 外廓尺寸 | 10.0000 × 6.0000 × 6.0000 in |

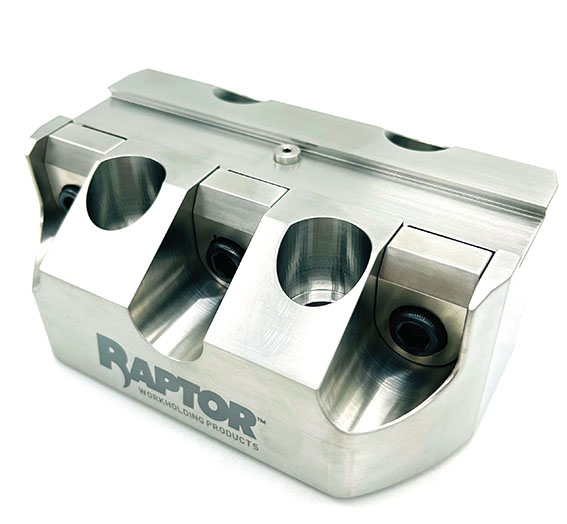

RWP-034SS, Stainless Steel, .75” dovetail fixture with a maximum workpiece size of 7.5” cube.

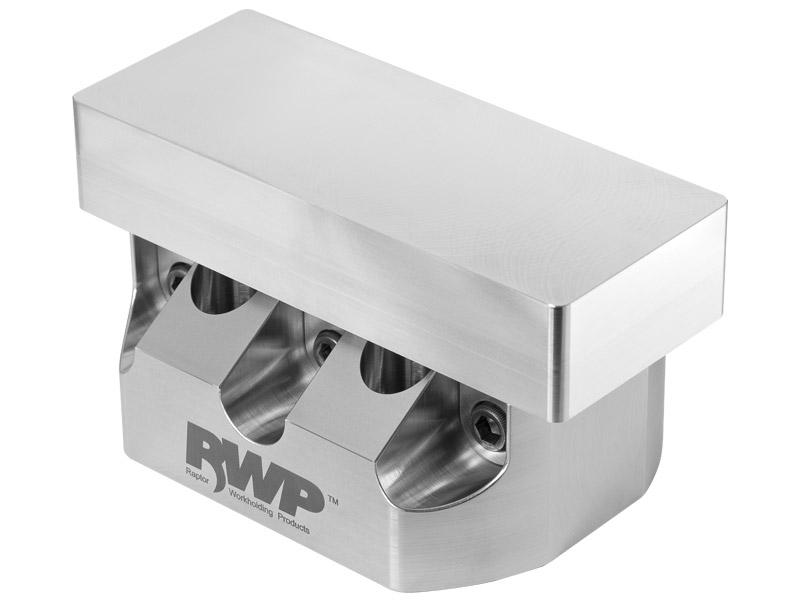

Description Instructions & Guidelines Key Dimensions Technical Files Related Products 17-4 Stainless Steel 0.75″ Dovetail Fixture This fixture is designed to connect directly to the Makino A51NX-5XU for milling applications. The product design, with three clamps, provides the ability to machine a long, skinny workpiece. This product does not fit Raptor Risers. Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient. See Key Dimension
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
