| 配套夹钳套件号 | RWP-KIT-302SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 燕尾宽度（in） | 0.750 |
| 直径（in） | 4.970 |
| 夹具高度（in） | 3.000 |
| 螺栓分布圆直径（in） | 3.800 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |

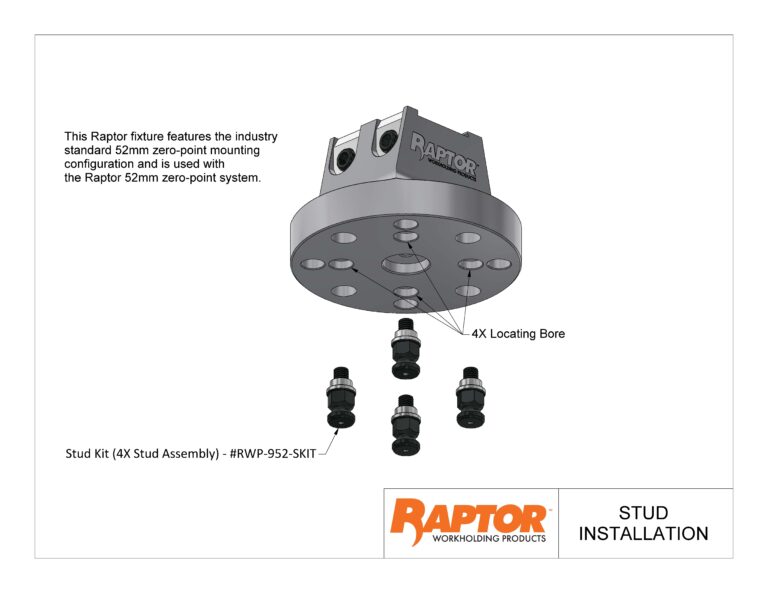

| 零点板规格 | 52mm |
| 自重 | 11 oz |
| 外廓尺寸 | 10.0000 × 6.0000 × 6.0000 in |

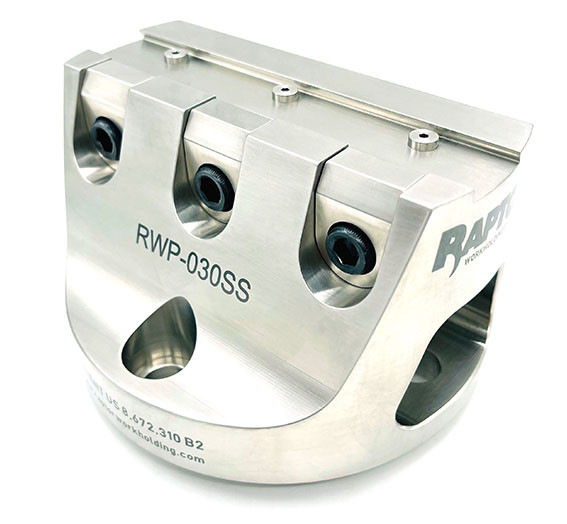

RWP-030SS, Stainless Steel, .75” dovetail fixture with 3.8” dia. Bolt circle mounting. 52mm Zero-Point
Description Instructions & Guidelines Key Dimensions Included Technical Files Related Products 17-4 Stainless Steel 0.75″ Dovetail Fixture This 0.75″ dovetail fixture is utilized for milling applications. This product design, with three clamps, provides the ability to machine long workpieces. This product pairs well with our RWP-PIC3SS, when used as a first operation to machine a Picatinny Rail. Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
