| 配套夹钳套件号 | RWP-KIT-302SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 燕尾宽度（in） | 0.750 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 3 oz |
| 外廓尺寸 | 10.0000 × 3.0000 × 4.0000 in |

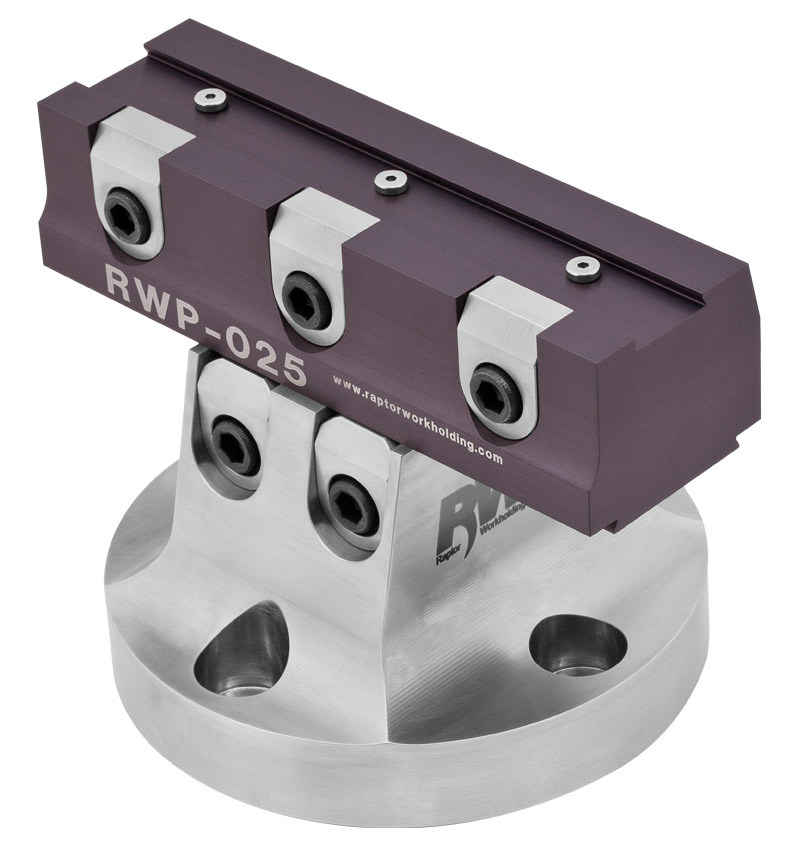

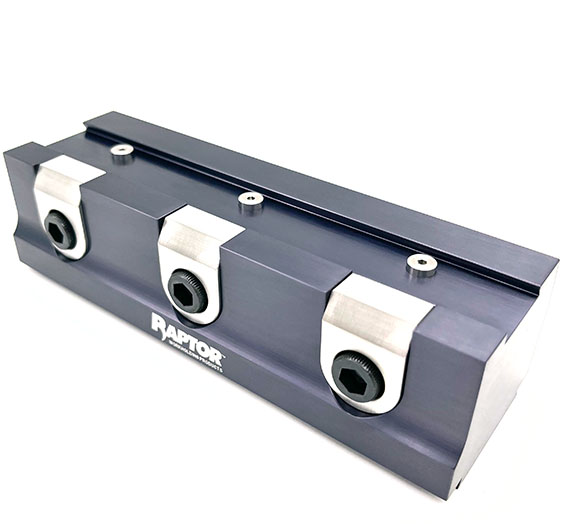

Aluminum 0.75" Mini Rail Dovetail Fixture with 1.5" Dovetail Base

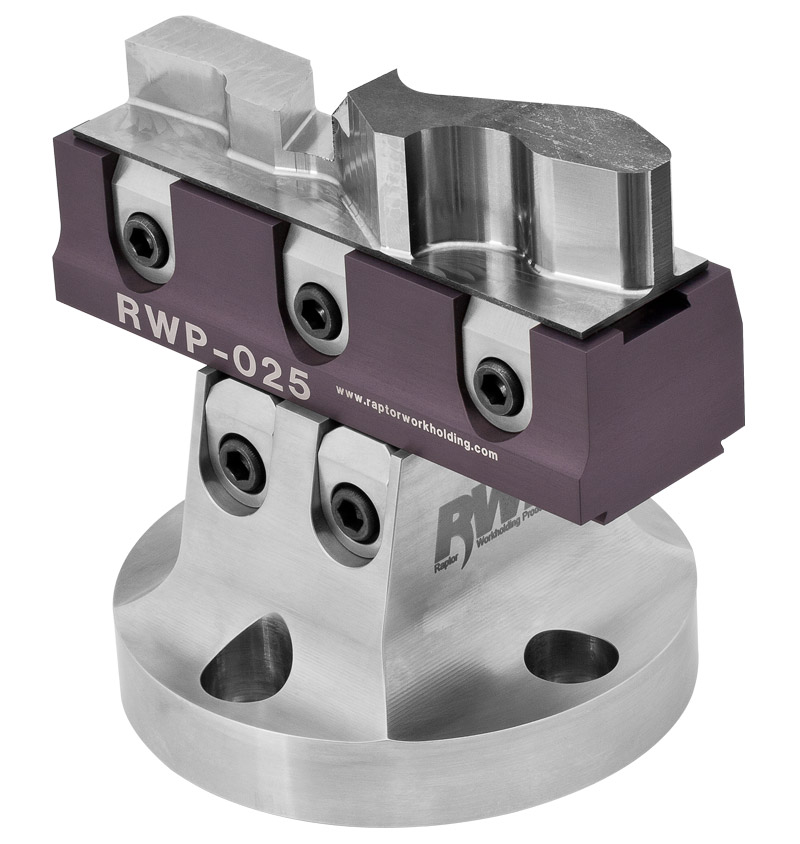

Description Instructions & Guidelines Key Dimensions Technical Files Related Products 7075-T6511 0.750″ Dovetail Fixture with a 1.50″ Dovetail Bottom Designed for quick-change applications that require machining long and skinny parts. Connects to the following 1.5″ Dovetail Fixtures: RWP-001, RWP-001SS, RWP-013 and RWP-013SS, RWP-026 & RWP-027 Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient. See Key Dimension Drawi
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
