| 配套夹钳套件号 | RWP-KIT-302SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 燕尾宽度（in） | 0.750 |
| 夹具高度（in） | 3.000 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 1 oz |
| 外廓尺寸 | 4.0000 × 4.0000 × 4.0000 in |
Aluminum 0.75" Dovetail Fixture

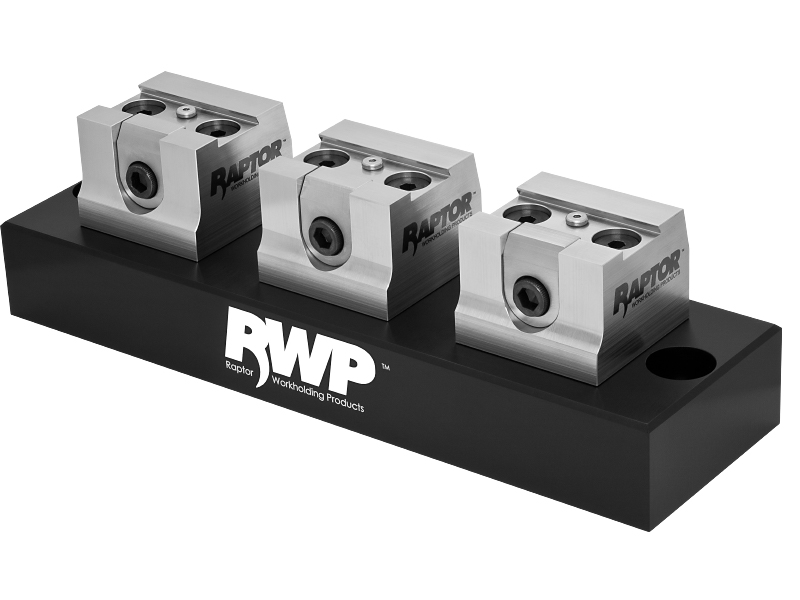

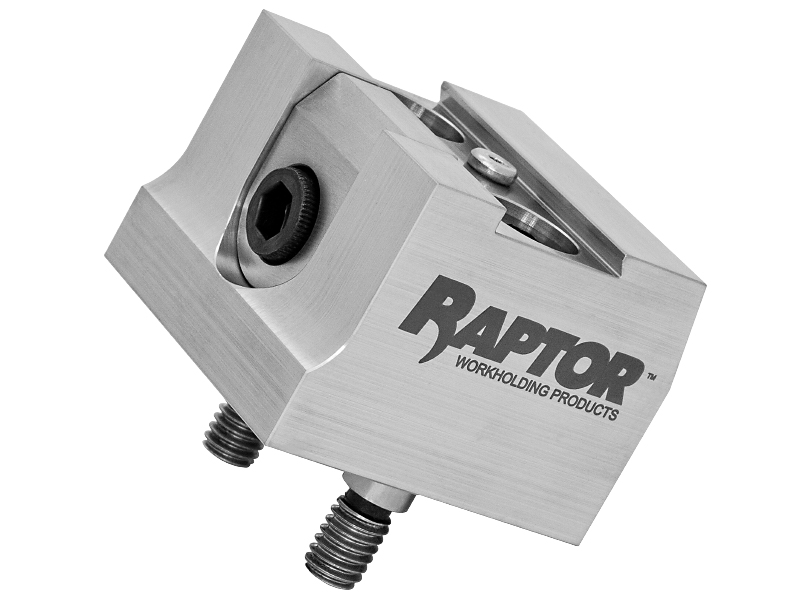

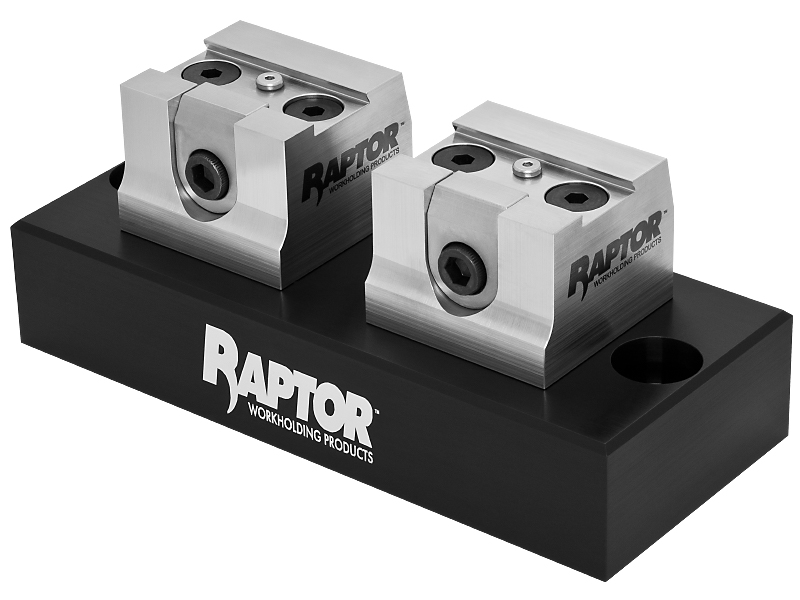

Description Instructions & Guidelines Key Dimensions Included Technical Files Related Products 17-4 Stainless Steel 0.750″ Dovetail Fixture Designed for modular applications. Multiple RWP-024SS fixtures can be placed in-line to hold long parts, which we refer to as a bridge system. Multi-fixture options: RWP-024SS-2XR, RWP-024SS-3XR, RWP-024SS-4XR & RWP-024SS-6XC * EDM Kits available at an additional cost. Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part.
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
