| 配套夹钳套件号 | RWP-KIT-302SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 燕尾宽度（in） | 0.750 |
| 夹具回转直径 | 10.552 |
| 夹具高度（in） | 2.310 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 17 oz |
| 外廓尺寸 | 12.0000 × 12.0000 × 4.0000 in |
7075 Aluminum 0.75" Dovetail Multi-Fixture with 2.25" Dovetail Bottom

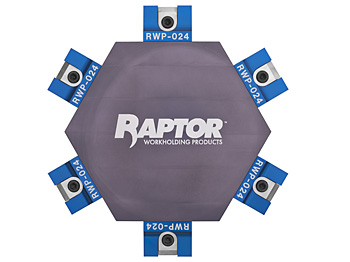

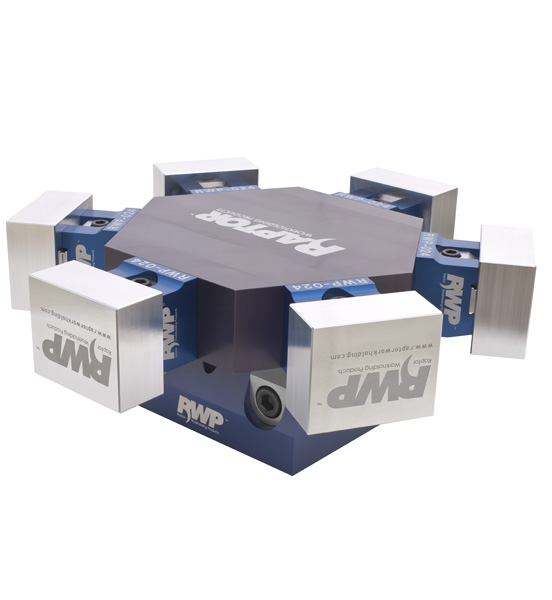

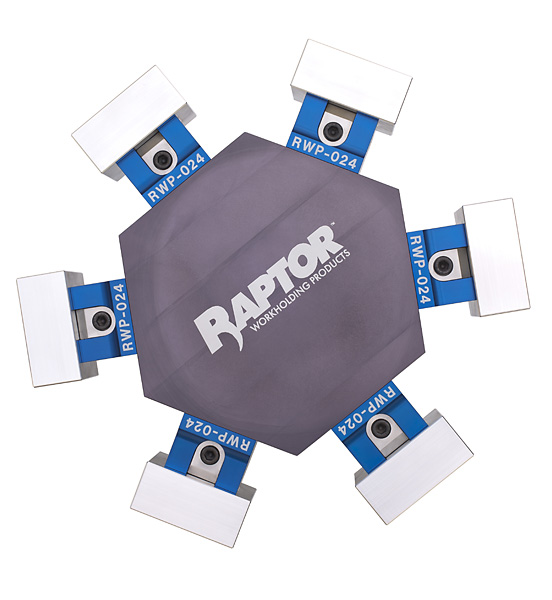

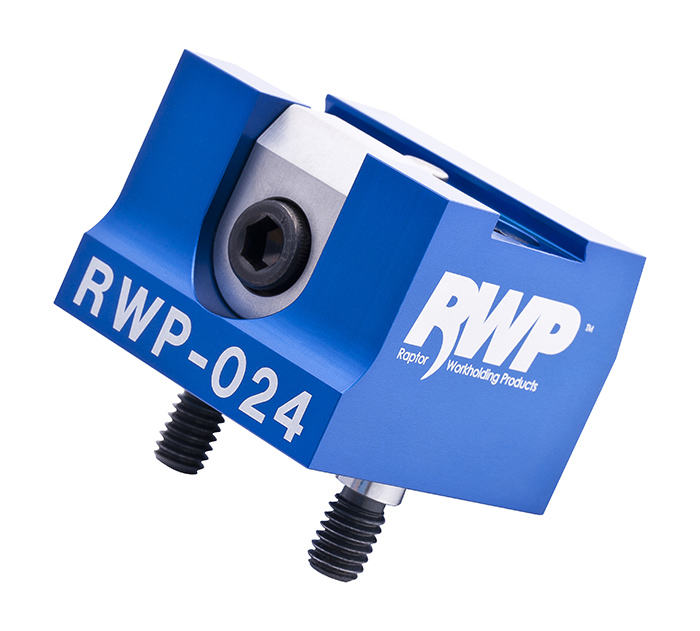

Description Instructions & Guidelines Key Dimensions Included Technical Files Related Products 7075 Aluminum 0.75″ Dovetail Multi-Fixture with 2.25″ Dovetail Bottom The RWP-024-6XC is a 0.75″ dovetail carousel for milling applications. This product is designed for modular applications: utilizing (6) RWP-024 fixtures on a carousel base to machine multiple items in 1 operation. This carousel base mounts to either RWP-006 or RWP-006SS, as shown under additional images, and are sold separately. Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distorti
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
