| 配套夹钳套件号 | RWP-KIT-302SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 燕尾宽度（in） | 0.750 |
| 夹具高度（in） | 2.875 |
| 底座长度（in） | 7.00 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 5 oz |
| 外廓尺寸 | 12.0000 × 6.0000 × 6.0000 in |

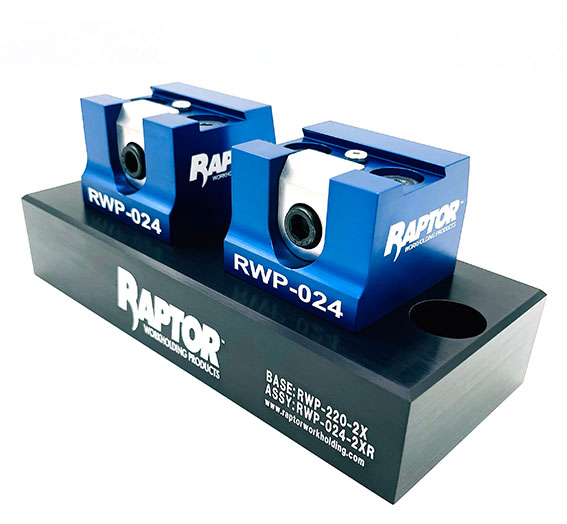

Aluminum 0.75" Dovetail 2 In-Line Bridge System

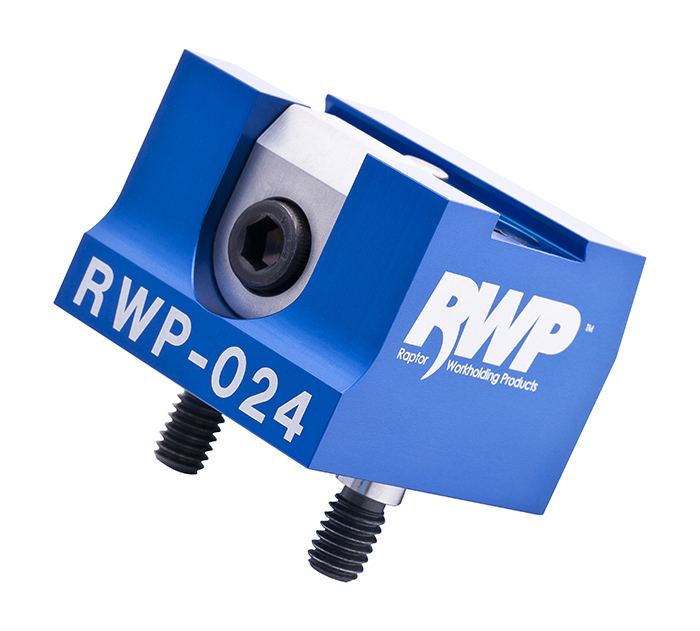

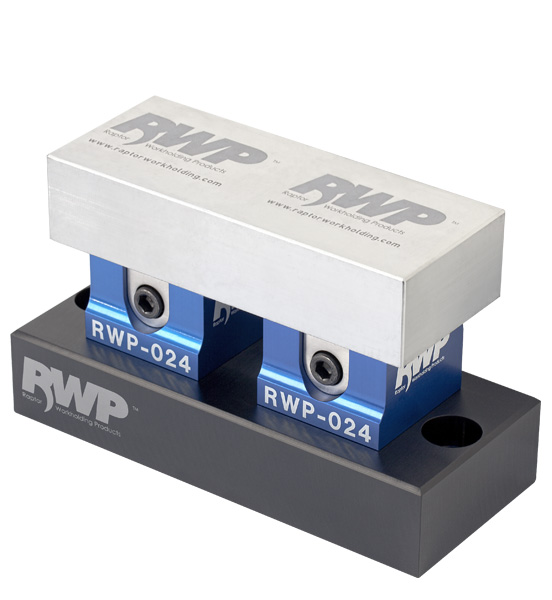

Description Instructions & Guidelines Key Dimensions Included Technical Files Related Products Aluminum 0.75″ Dovetail Multi-fixture – In Line bridge system holds (2) RWP-024 on a single base The RWP-024-2XR is a 0.75″ dovetail bridge system for milling applications. This product is designed for modular applications: utilizing two RWP-024 fixtures in-line to hold longer parts. The bridge system is sold complete as shown. *Base unit can be purchased separately if you already own the RWP-024. Please call for details and availability. Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That mea
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
