| 配套夹钳套件号 | RWP-KIT-306SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 燕尾宽度（in） | 0.500 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 3 oz |
| 外廓尺寸 | 5.0000 × 5.0000 × 5.0000 in |

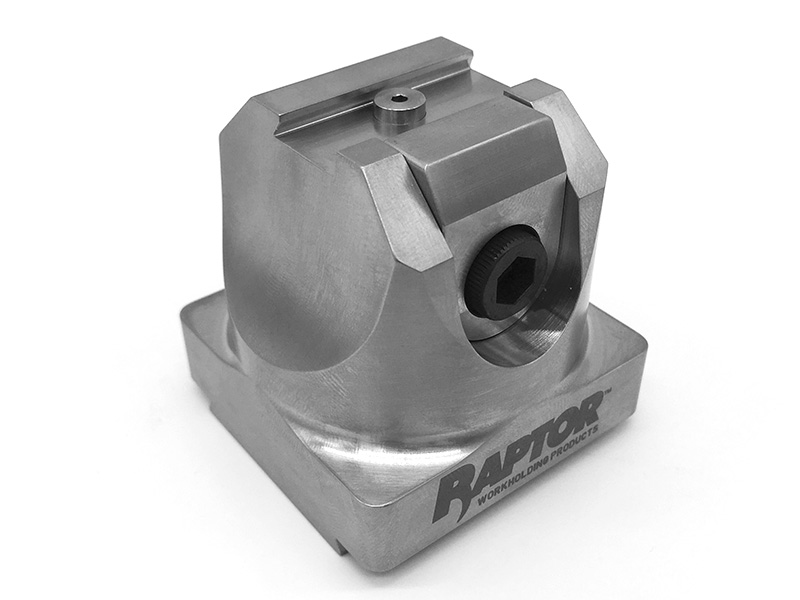

Stainless Steel 0.50" Dovetail Fixture with 1.5" Dovetail Base

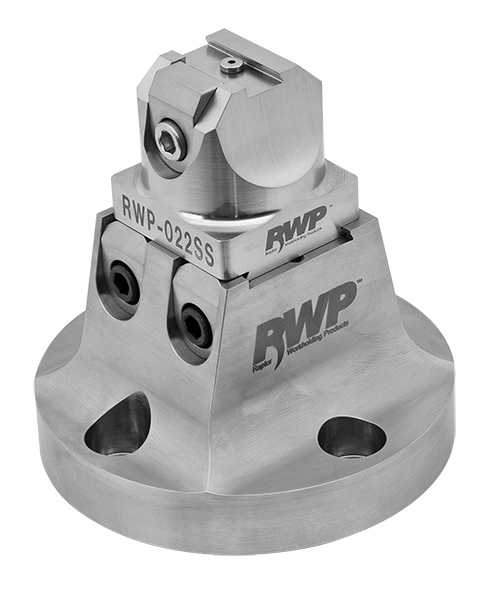

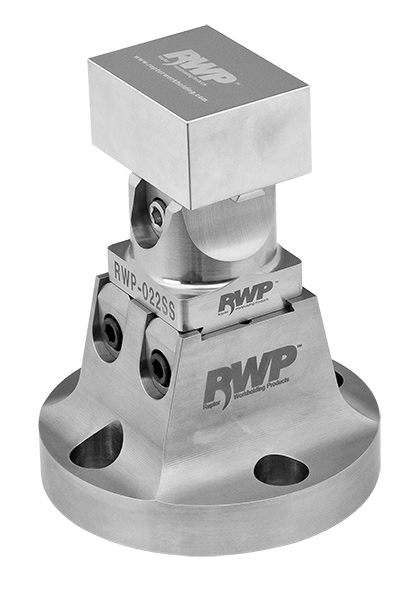

Description Instructions & Guidelines Key Dimensions Technical Files Related Products The RWP-022SS is a 17-4 Stainless Steel 0.50″ Dovetail Fixture with 1.50″ Dovetail Bottom Connects directly to the following 1.50″ dovetail fixtures: RWP-001, RWP-001SS, RWP-013, RWP-013SS, RWP-026, and RWP-027. This allows you to quickly machine smaller size parts without taking your primary fixtures off of the machine. Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece. Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every p
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
