| 配套夹钳套件号 | RWP-KIT-306SQ |
|---|---|
| 燕尾厚度（in） | 0.1250 |
| 燕尾宽度（in） | 0.500 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 3 oz |
| 外廓尺寸 | 5.0000 × 5.0000 × 5.0000 in |

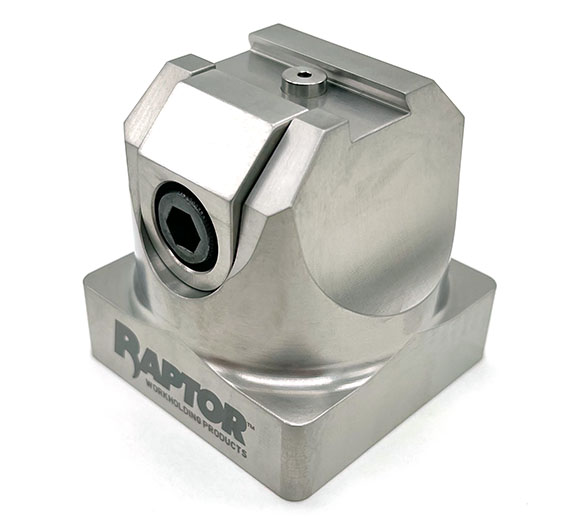

Stainless Steel 0.50" Dovetail Fixture

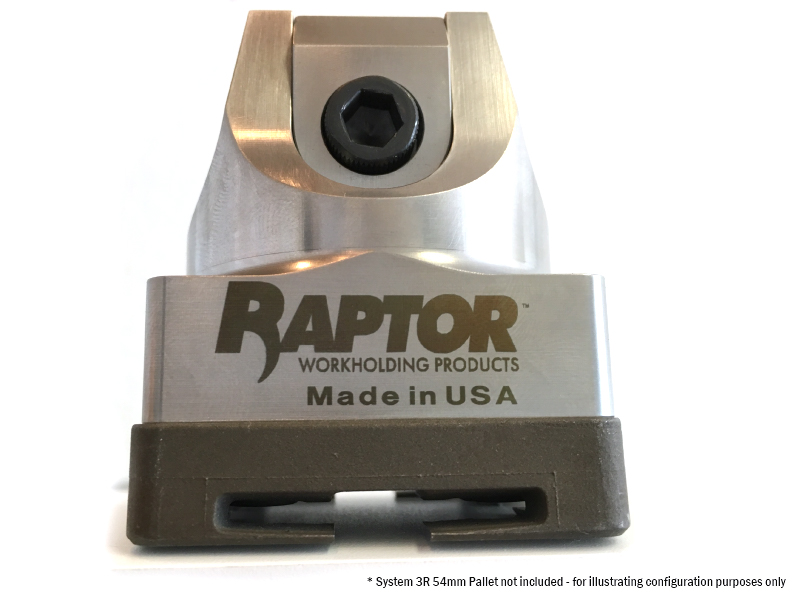

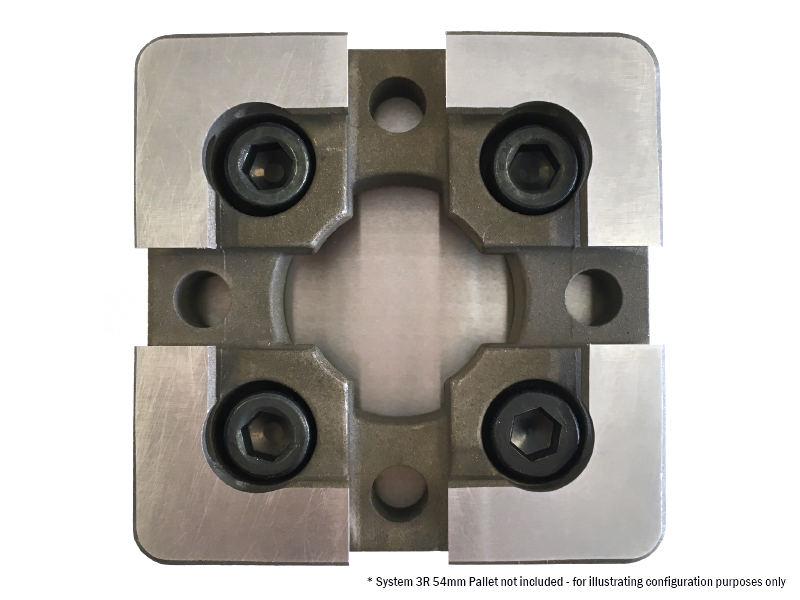

Description Instructions & Guidelines Key Dimensions Technical Files Related Products 17-4 Stainless Steel 0.50″ Dovetail Fixture Connects directly to System 3R 54mm pallets: MacroStd: 3R-651.7E-S / 3R-651.7E-XS and MacroHP: 3R-651.7E.P. Using the 3R pallet reduces downtime by allowing the machine operator to load workpieces on an alternate pallet in seconds. Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece. Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient. See Key Dimension Drawing
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
