| 适配对象 | RWP-019SS |
|---|---|
| 燕尾宽度（in） | 0.375 |
| 夹具回转直径 | 4.554 |
| 高度（in） | 3.126 |
| 推荐铣刀 | RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C |
| 自重 | 12 oz |
| 外廓尺寸 | 12.0000 × 12.0000 × 8.0000 in |

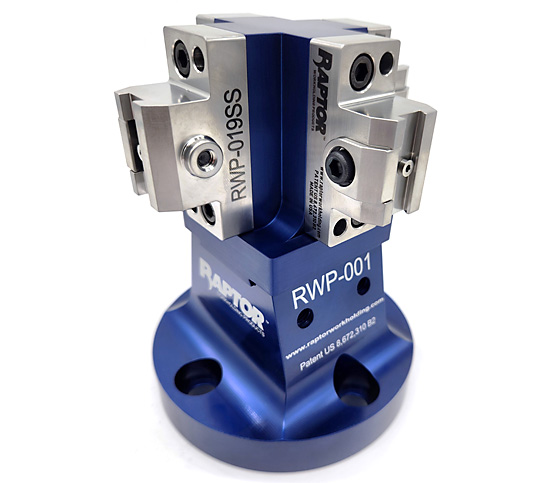

90 degree tombstone 4 RWP-019SS Dovetail Fixtures with 1.5" RWP-001 Dovetail Fixture Bundle

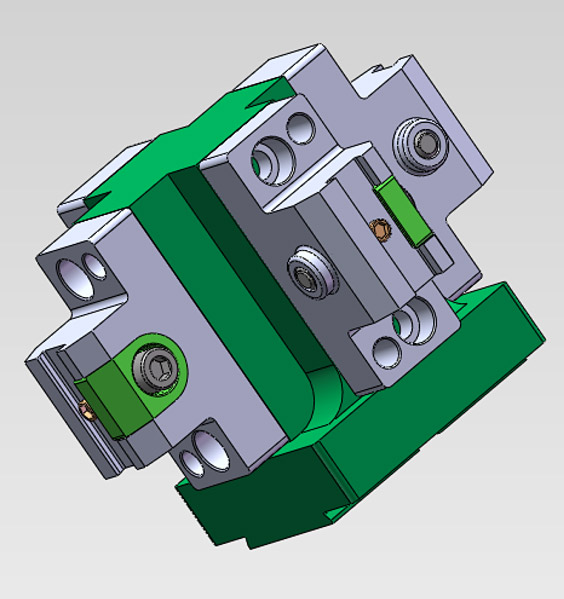

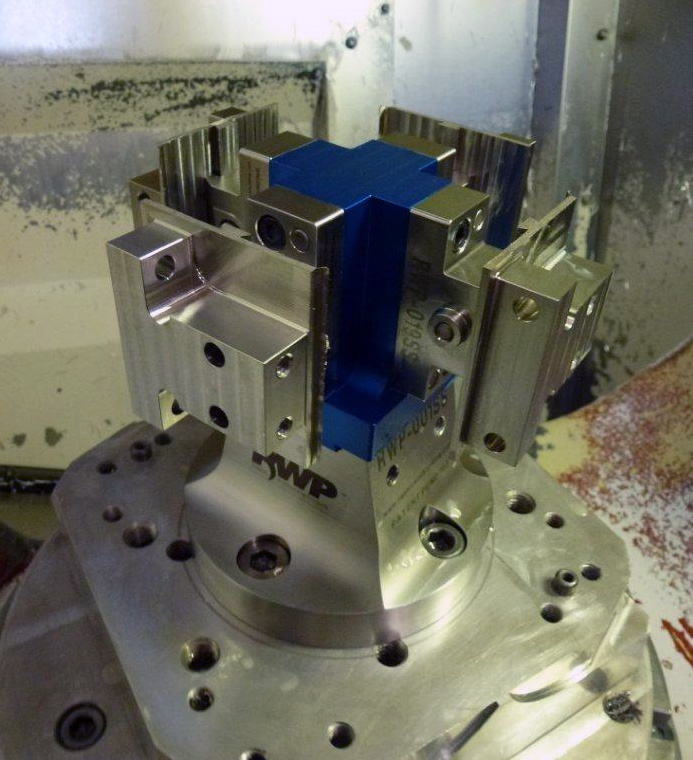

Description Instructions & Guidelines Key Dimensions Included Technical Files Related Products Save big with this discounted bundle that includes the RWP-019-4X90T and an RWP-001 dovetail fixture. Order now and receive FREE Shipping. The RWP-001 mounts directly to the Matsuura MAM72-35V. Risers and adapter plates are available to adapt to any machining center. The Mini Tombstone body utilizes four RWP-019SS dovetail fixtures. This fixture is designed specifically for five-axis machining applications and allows you to hold four workpieces at the same time. This fixture mounts to the following 1.50″ Dovetail Raptor Fixtures: RWP-001, RWP-001SS, RWP-013, RWP-013SS, RWP-026, and RWP-027. The dovetail bottom allows for quick and easy change-out. Load-up the next Mini tombstone with your workpieces while the other one is cycling. Changeover time is reduced and the productivity of your ma
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
