RWP-952-01

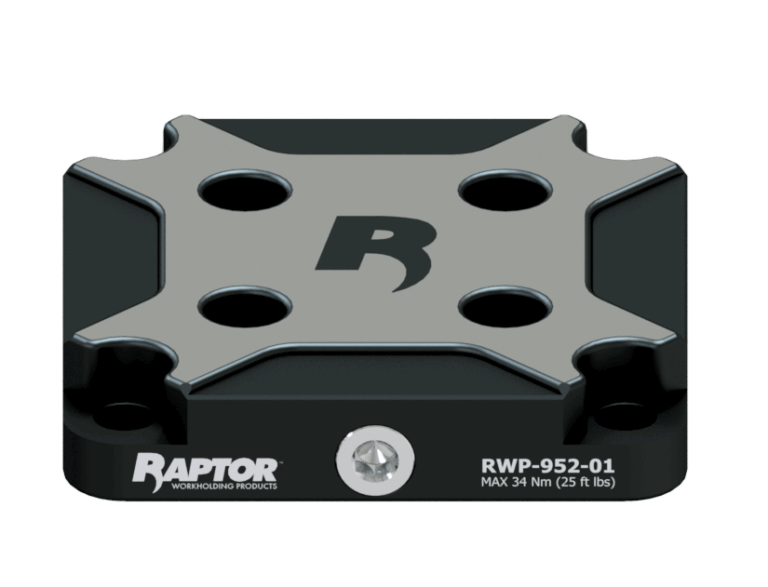

RWP-952-01　零点夹持板125mm 方形 × 26mm 厚52mm 零点定位

Zero-point clamping plate 125mm square x 26mm thick 52mm Zero-Point

Description Key Dimensions Technical Files Related Products RWP-952-01 Zero-point clamping plate Mounting holes spreads on a 100 x 100mm spacing Save time with repeatability up to 0.0005″ Industry standard 52mm pull stud spacing 1,100 lbs clamping force per stud Compatible with competitor fixtures* 4 coolant slots for internal drainage Compensating design assures 4 point contact Proudly manufactured in the United States Built from high-quality steel for durability * RWP-952-SKIT Zero-Point Stud Mounting Kit Required Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (Required) Password (Required) Remember Me Register I forgot my password Create an Account Name * First Last This field is hidden when viewing the form Username Email * Phone Company * Password E

本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
