| 床身高度（in） | 1.96 |
|---|---|
| 钳口开度（in） | 0 - 2.5 |
| 钳口反装（in） | 3.00-5.62 |
| 最大允许扭矩（ft/lbs） | 30 |
| 最大扭矩下夹紧力 | 4000 lbs |
| 定心公差 ± | 0.0005" |
| 零点板规格 | 52mm |
| 自重 | 22 oz |
| 外廓尺寸 | 13.0000 × 13.0000 × 6.0000 in |

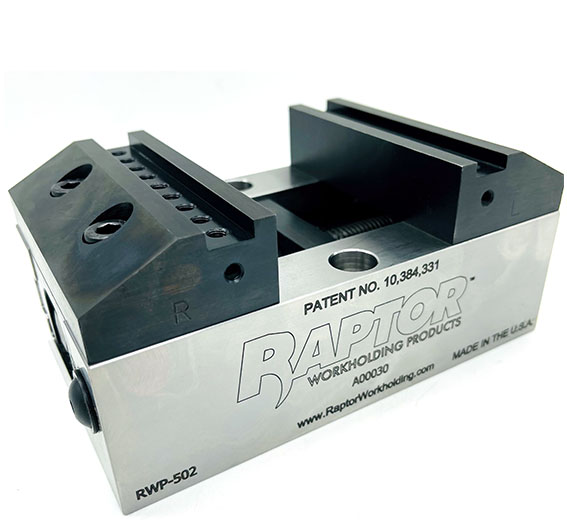

Steel 100mm Self Center Vise 52mm Zero-Point

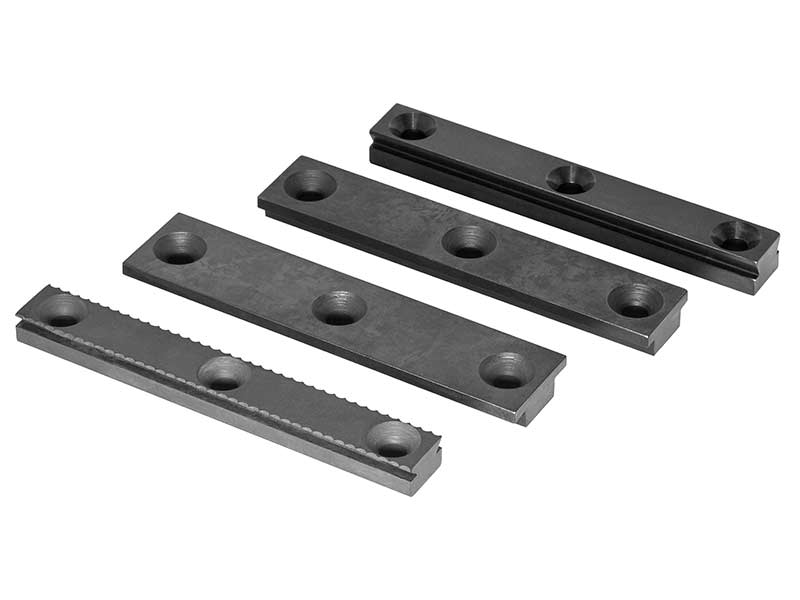

Description Key Dimensions Mounting Configurations Technical Files Related Products 100mm Wide – Self Centering Vise Designed to provide reliable, consistent workholding for your manufacturing needs. All steel construction Automatically positions workpiece in center of vise. Centering tolerance is +/-0.0005″ (+/-0.013mm) and repeatability is 0.001″ Jaws adjust from either end of vise. Jaw clamping range is 0-2.500″as shown and 3.000″-5.620″ with jaws reversed Insert options available for a variety of holding applications: Dovetail, Serrated, Parallels, TalonGrip™ , Talon Stop, & Soft Jaws. (all sold separately) Utilizes two dowel pins: one for centering and one for locating. Jaw accessory screws included – (6) FHCS. Raptor Workholding Products has workholding solutions for your application needs – from start to finish: Begin with a Se
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
