| 总高（mm） | 55 |
|---|---|
| 夹持范围（齿形，mm） | 0-31 |
| 夹持范围（光面，mm） | 5-35 |
| 夹持范围（齿形反装，mm） | 19-49 |
| 夹持范围（光面反装，mm） | 25-55 |
| 最大允许扭矩（ft/lbs） | 24 |
| 六角尺寸（mm） | 8 |
| 定心公差 ± | 0.01mm (0.0004") |
| 零点板规格 | 50mm |
| 自重 | 22 oz |
| 外廓尺寸 | 13.0000 × 13.0000 × 6.0000 in |

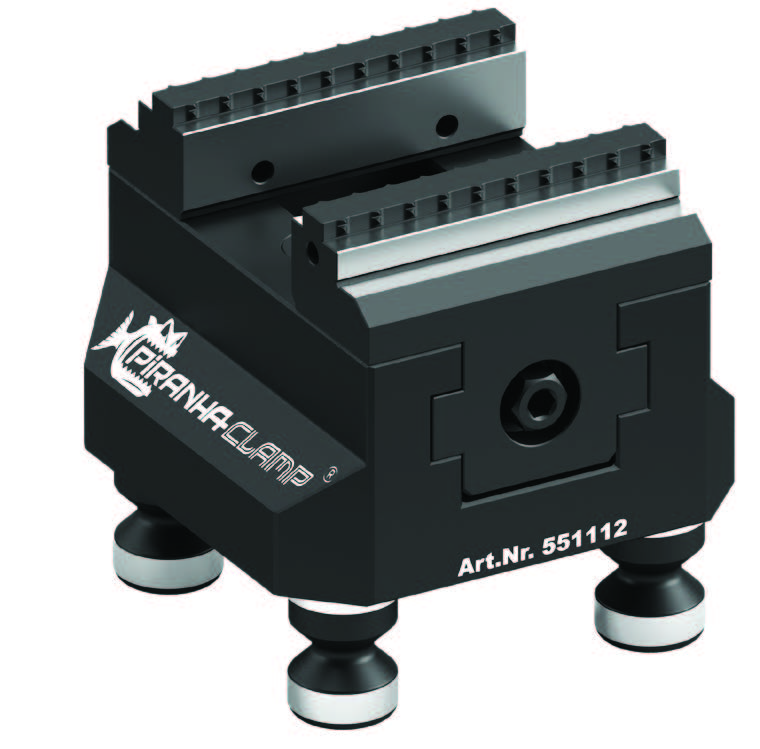

Centering Vise PV 75 50mm Zero-Point
Description Key Dimensions Mounting Configurations Technical Files Related Products 551112 Centering Vise PV 75 All Steel Construction Repeatability: .01mm Small and Compact Can be used with Zero Point Clamping Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (Required) Password (Required) Remember Me Register I forgot my password Create an Account Name * First Last This field is hidden when viewing the form Username Email * Phone Company * Password Enter Password Confirm Password Country * United StatesAfghanistanÅland IslandsAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua and BarbudaArgentinaArmeniaArubaAustraliaAustriaAzerbaijanBahamasBahrainBangladeshBarbadosBelarusBelgiumBelizeBeninBermudaBhutanBoliviaBonaire, Sint Eustatius and Sab
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
