| 燕尾厚度（in） | 0.1250 |
|---|---|
| 燕尾宽度（in） | 1.500 |
| 材质 | 7075 Aluminum |
| 自重 | 2 oz |
| 外廓尺寸 | 3.0000 × 3.0000 × 3.0000 in |
Aluminum 1.5" Dovetail Pinch Block

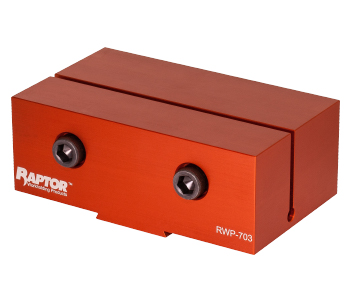

Description Instructions & Guidelines Key Dimensions Included Technical Files Related Products RWP-703 Pinch block with 1.50″ Dovetail Bottom Used for secondary/final operations with reoccurring machining or for removing a dovetail from the sixth side of a finished part. Pinch block is clamped with (2) 3/8-16 SHCS. The shim inserts, provided, acts as spacers so that the part's shape can be carved out in its most natural state, essentially contouring its shape. Fixture Compatibility: RWP-001, RWP-001SS, Rwp-013, RWP-013SS, RWP-026 & RWP-027 See Key Dimension Drawing for more detail Included with this fixture: Qty (2) Socket head cap screw Qty (2) Standard Shims Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (Required) Password (Required) Remember Me Regis
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
