| A（mm） | 600 |
|---|---|
| B（mm） | 90 |
| C（mm） | 60 |
| E1（mm） | 40 |
| D1（mm） | 400 |
| E2（mm） | 50 |
| D2（mm） | 400 |
| 自重 | 17.8 kg |
| 最大夹紧力 | 3,596 @ 22 ft-lbs |
| 适配钳口宽度（mm） | 105, 120, 80 |
| 自重 | 22 oz |
| 外廓尺寸 | 13.0000 × 13.0000 × 6.0000 in |

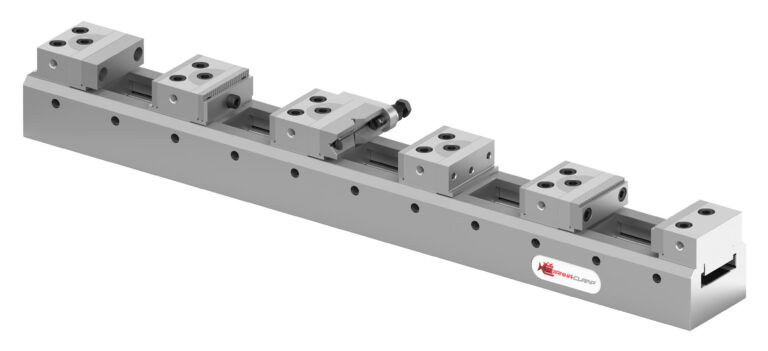

600 x 80 mm Multi-Clamp Vise Rail

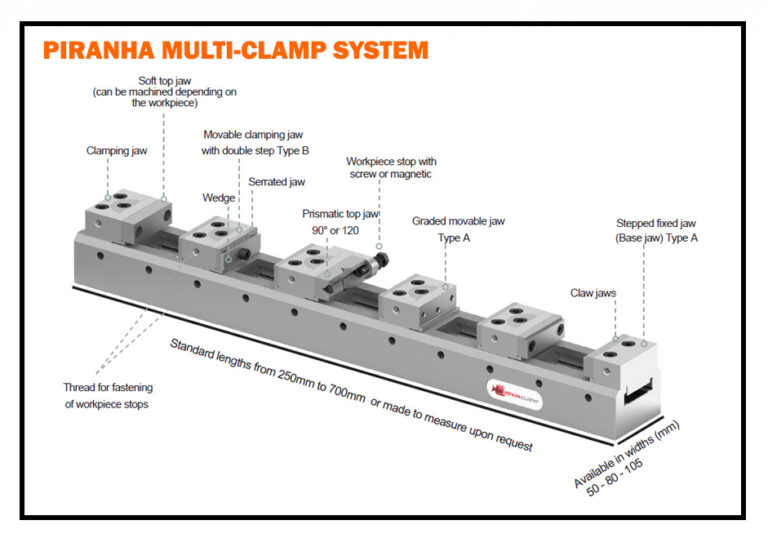

Description Dimensions Key Multi-Clamp System Technical Files Related Products The Piranha Multi-Clamp Vise is one of the most accurate, versatile, and flexible clamping systems for multiple workpiece clamping. It is designed for clamping multiple workpieces at the same time on the machine tool table, creating a reduction in part changeover times. This system is built around a steel clamping rail with standard lengths from 250mm up to 700mm and standard widths of 50mm, 80mm and 105mm. Piranha Multi-Clamp offers a wide variety of clamping modules that bolt to the vise bed, locating on the 1mm, 60-Rockwell, serrations to maximize clamping repeatability. By utilizing the various clamping modules, the Piranha Multi-Vise can accommodate various clamping requirements needed in today's machining environments. Each clamping module utilizes linear clamping with a single screw moving a conical sha
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
