| 适配对象 | 170 Vises |
|---|---|
| 底座直径（mm） | 250 |
| 高度（mm） | 160 |
| 自重 | 9.7 kg / 21.4 lbs. |
| 零点板规格 | 50mm |
| 自重 | 22 oz |
| 外廓尺寸 | 13.0000 × 13.0000 × 6.0000 in |

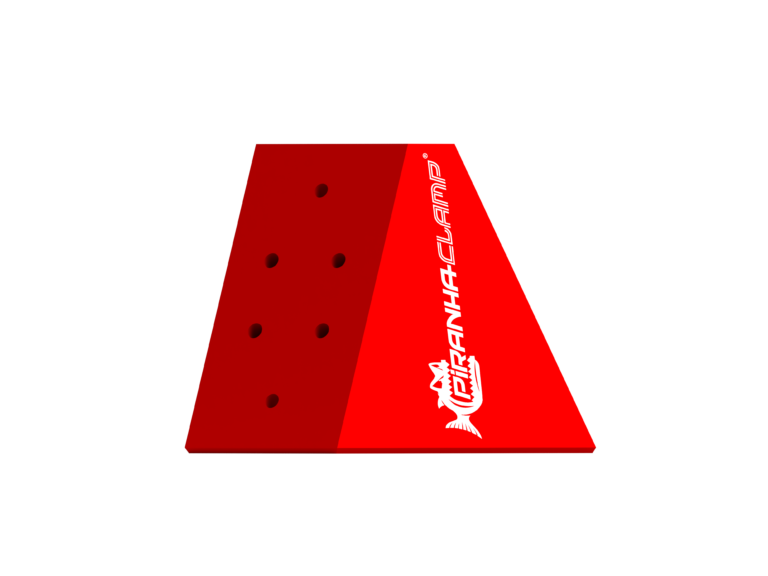

Pyramids Multiple clamping on 5-axis machines 50mm Zero-Point
Description Key Dimensions Mounting Configurations Technical Files Related Products 551116 Pyramids Multiple clamping on 5-axis machines Pyramid Fixture Body with mounting for (3) Vises Pyramid faces are at 65° Zero Point Mounting Included This Pyramid has mounting for the following Vises: 540444-PY 551079-PY 540362-PY 540446-PY 551076-PY 551075-PY (Vises not included, sold separately) Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (Required) Password (Required) Remember Me Register I forgot my password Create an Account Name * First Last This field is hidden when viewing the form Username Email * Phone Company * Password Enter Password Confirm Password Country * United StatesAfghanistanÅland IslandsAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAn
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
