| 虎钳重量（lbs） | 12.57 |
|---|---|
| 含钳口总高（mm） | 94 |
| 中心钳口宽度（mm） | 40 |
| 中心钳口重量（lbs） | 0.661 |
| 外侧钳口宽度（mm） | 50 |
| 外侧钳口重量（lbs） | 1.32 |
| 最大允许扭矩（ft/lbs） | 73 |
| 六角尺寸（mm） | 12 |
| 零点板规格 | 50mm |
| 自重 | 22 oz |
| 外廓尺寸 | 13.0000 × 13.0000 × 6.0000 in |

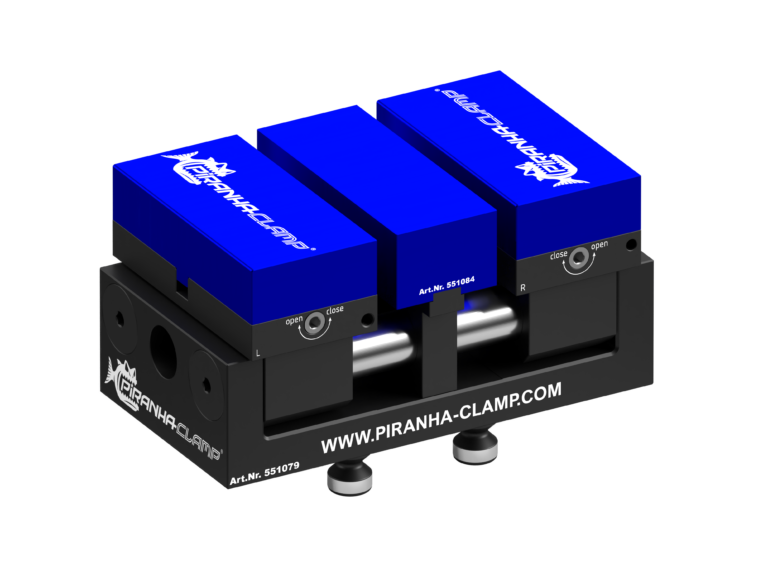

Double Station Gepard 170 50mm Zero-Point
Description Key Dimensions Mounting Configurations Technical Files Related Products 551079 Double Station Gepard 170 All Steel Construction Drive Screw heat treated for high strength Hardened and Coated Rails for accuracy Repeatability: .01mm Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy . Username (Required) Password (Required) Remember Me Register I forgot my password Create an Account Name * First Last This field is hidden when viewing the form Username Email * Phone Company * Password Enter Password Confirm Password Country * United StatesAfghanistanÅland IslandsAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua and BarbudaArgentinaArmeniaArubaAustraliaAustriaAzerbaijanBahamasBahrainBangladeshBarbadosBelarusBelgiumBelizeBeninBermudaBhutanBolivi
本页参数取自 Raptor 官方产品数据。如需官方尺寸图（PDF）或三维模型（STEP / SolidWorks），请联系上海翼联工贸，我们可代向原厂索取。
